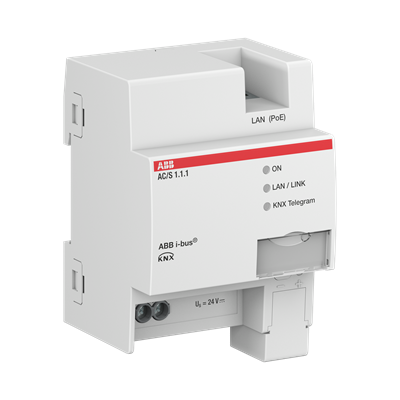

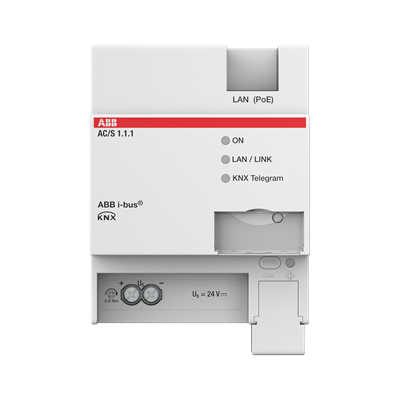

Automation controller with pre-defined automation modules for comprehensive heating, ventilation and air conditioning automation (HVAC automation). For use from central systems to room automation, supports the achievement of energy efficiency goals such as EN 15232.
The device contains pre-defined application-specific automation modules (ASM) for the most common areas of application, for instance the calculation of heat demand, trends or schedulers. You can create your own automation modules using a graphic logic editor.
The device has a web user interface for the display of data and operation; this interface is generated automatically.
Commissioning is undertaken entirely in ETS version 5.6.5 or later. Additional external software is not required. The device has a KNX TP connection and requires a supply voltage of 24 V DC or PoE for operation.
Technical Data
| Supply |
|
|
|
Bus voltage |
21…32 V DC |
|
Current consumption, bus |
< 12 mA |
|
Power loss, bus |
Maximum 250 mW |
|
Power loss, device |
Maximum 3 W |
|
Supply voltage Us |
- 24 V DC (+20 % / -15 %) or
- PoE (IEEE 802.3af class 2)
|
|
Current consumption, supply voltage |
- 90 mA typical
- 120 mA peak current
|
|
KNX connection |
0.25 W |
|
KNX current consumption |
< 10 mA |
| Connections |
|
|
KNX |
Via bus connection terminal |
|
Supply voltage |
- Via screw terminals
- 0.2…2.5 mm² fine-wire
- 0.2…4 mm² solid
|
|
LAN |
- RJ45 connector for 10/100BaseT
- IEEE 802.3 networks, autosensing
|
| Device type |
|
|
Application Controller: |
AC/S 1.1.1 |
|
Application: |
HVAC application/…* |
|
Maximum number of KNX group objects: |
2000 |
|
Maximum number of KNX group address assignments: |
16000 |
|
Maximum number of application-specific automation modules (ASM): |
500 |
|
• Of which schedulers: |
15 |
|
• Of which central HVAC: |
15 |
|
Maximum number of trends: |
50 values for up to 3 years |
|
Automation ASM |
|
|
• Maximum number of logic elements: |
1000 |
|
• Maximum number of sockets: |
200 |
|
• Maximum number of web user interface I/O: |
30 |
|
Maximum number of web user interface accesses: |
5 |
