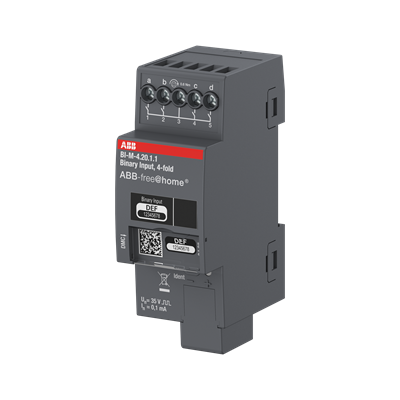

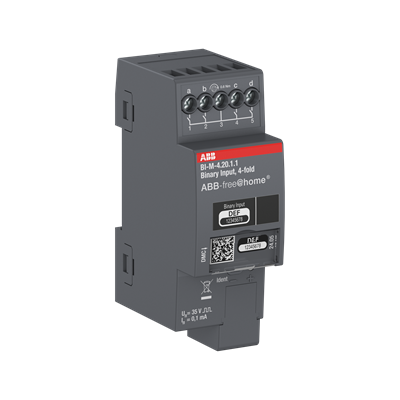

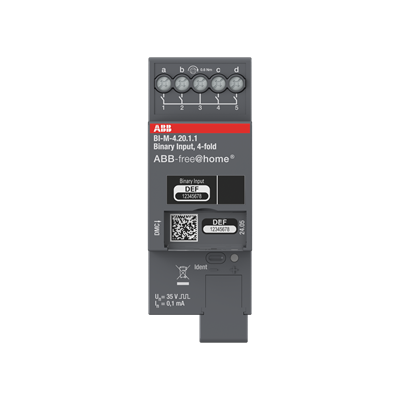

Scans floating contacts with internally generated scanning voltage. No external Voltage needed. The binary inputs enable detection of independent input signals. Each channel can be connected with conventional push-buttons or auxiliary contacts. The information can be used to control free@home actuators or to indicate status information. The devices are powered via the free@home bus and do not require an additional power supply.
Technical
-
Number of LEDs: 1
-
Number of Digital Inputs: 4
-
Number of Inputs: Analog (0 ... 10 V / 4 ... 20 mA): 4
-
Compatible Bus Systems: free@home (TP)
-
Product Range: free@home
-
Transmission Standard: Twisted Pair Wiring
-
Manual Operation: No
-
Terminal Type: Bus Connection
