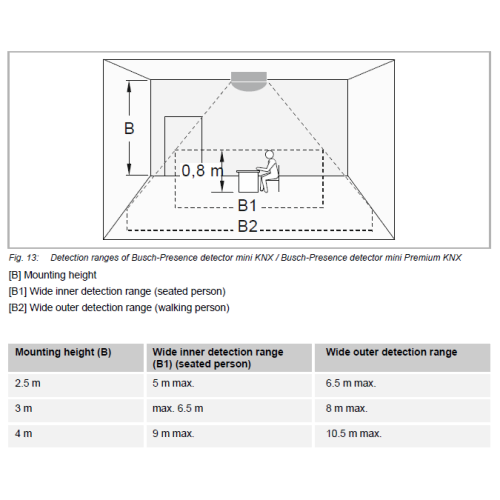

Detection range (for mounting height 2.5 m, 3 m and 4 m): circular.
Seated persons Ø: max. 5 m, max. 6.5 m and max. 9 m.
Walking persons Ø: max. 6.5 m, max. 8 m and max. 10.5 m.

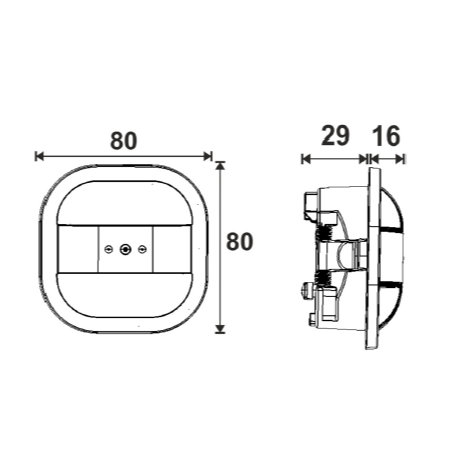

Visible height 16 mm. With 4 channels.
For dimming/brightness of the rules to a defined value in a designated collection area. HVAC function for controlling heating and/or cooling systems and ventilation systems in the designated collection area.
Detectors application with 2 power off stages. Detectors application with integrated monitoring function.
Constant light controller with up to two independent channels. Constant light controller with max. 2 outputs for dimming daylight control/rules of two rooflights in the room.
Integrated object room temperature controller.
10 freely programmable IR channels (blue and/or white) Incl. 5 logic channels (logic gates, gates, delay and staircase lighting)
Evaluation via internal brightness sensor.
Weighting of up to 2 external brightness values and the internal brightness sensor possible.
The programming button can be activated with the IR transmitter 6010-25 (-500).
With integrated KNX bus coupler.
Suitable for false ceilings with a board thickness from 9 to 25 mm. Hole size: Ø 68 mm.
Suitable for surface mounting installation.
Cannot be installed in British Standard or VDE flushmounted box.
