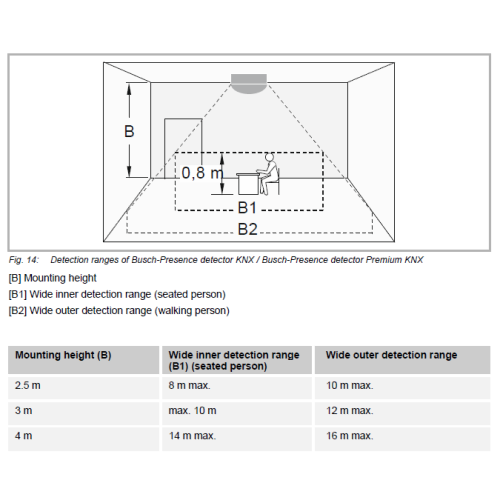

Detection range (for mounting height 2.5 m, 3 m and 4 m): circular.
Seated persons Ø: 8 m, 10 m and 14 m.
Walking persons Ø: 10 m, 12 m and 16 m.
Visible height 23 mm.With 4 channels. For dimming/brightness of the rules to a defined value
in a designated collection area. HVAC function for controlling heating and/or cooling systems
and ventilation systems in the designated collection area. Detectors application with 2 power
off stages. Detectors application with integrated monitoring function. Constant light controller
with up to two independent channels. Constant light controller with max. 2 outputs for dimming
daylight control/rules of two rooflights in the room. Integrated object room temperature
controller. 10 freely programmable IR channels (white). Incl. 5 logic channels (logic gates,
gates, delay and staircase lighting). Weighting of up to 2 external brightness values and the
internal brightness sensor possible. With integrated KNX bus coupler. Connections: KNX-line:
Bus connection terminal.
Brightness limit value: 1 Lux – 1000 Lux. Mounting height: 2 m – 4 m. Protection class
(Device): IP 20. Temperature range (Device): – 5 °C to 45 °C.

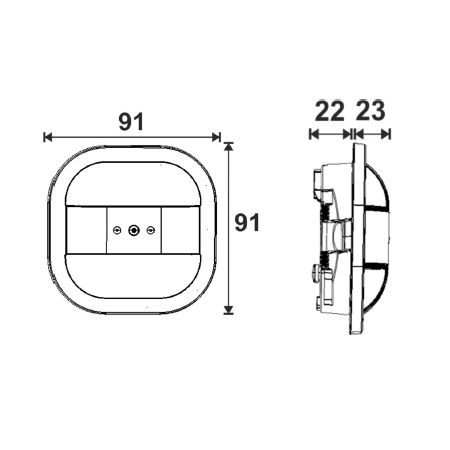

Dimensions: (L x W x D): 91 mm x 91 mm x 45 mm. Mounting depth: 22 mm.
