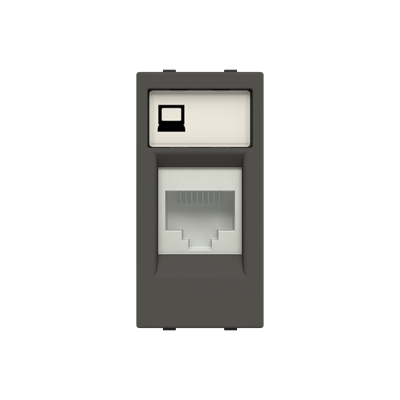

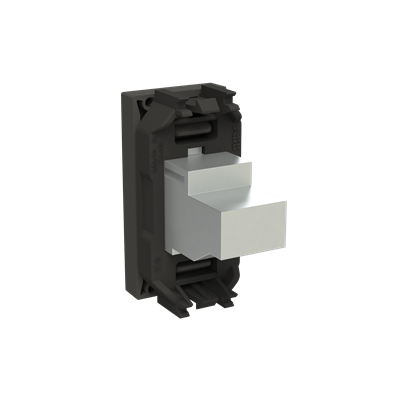

- RJ45 type connector
- Cat.6A - 8 pole
- STP (Shielded Twisted Pair)
- Housing: Zinc die-casting.
- Max. data speed: 500MHz/10Gbps/100m
- Durability: 750 cycles (at least)
- IDC: PC UL94V-0, Accept 22-26AWG solid wire.
- Contact: RJ45 8P8C, 3~50 micro-inch gold plating over nickel plated on contact area. Standard:
- ANSI/TIA/EIA 568B.2, ISO/IEC11801 & EN50173.
- Tool-less wiring.
Combination with frames AMD5144-XX & 5244-XX
