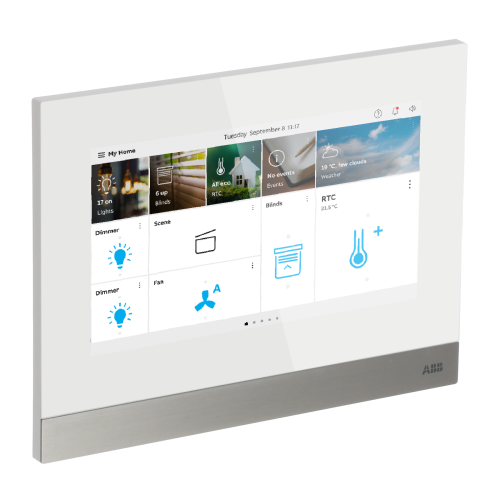

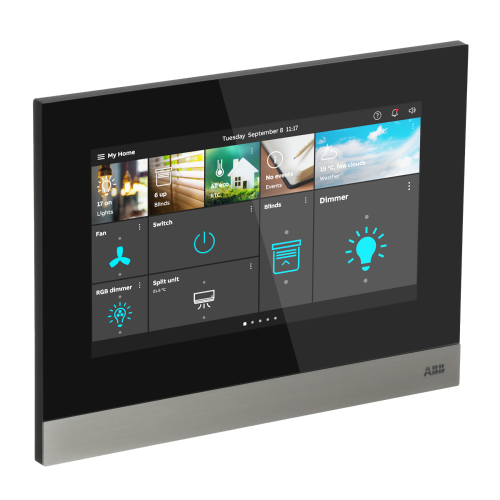

This device is a central control panel of the ABB-Welcome IP system and operates exclusively with components from this system. The device must only be installed in dry indoor rooms.
| Designation |
Value |
| Rating voltage |
24 V ⎓ |
| Operating voltage range |
20-27 V ⎓ |
|
1 Rating current
|
27 V ⎓, 250 mA
24 V ⎓, 280 mA |
|
2 Rating current
|
27 V ⎓, 390 mA
24 V ⎓, 440 mA |
| Display size |
7" |
| Resolution |
1024 x 600 px |
| Operating temperature |
-10 °C … +55 °C |
| PoE standard |
IEEE802.3 af |
|
2 Alarm power output
|
12 V ⎓, 200 mA |
| 2 Relay output
|
30 V ⎓, 1 A |
|
1 Wireless transmission band
|
802.11b/g/n:
2412...2462MHz (for United States)
2412...2472MHz (for European countries)
802.11a/n:
5150…5250MHz
5250…5350MHz
5470…5725MHz (not used in Russia)
5725…5850MHz (for United States)
|
|
1 Wireless transmission power
|
Max. 20 dBm@12 Mbps OFDM 2.4 G
Max. 20 dBm@12 Mbps OFDM 5.8 G |
|
1 Wireless transmission standard
|
IEEE 802.11 a/b/g/n |
1 IP touch 7 (LAN+WiFi) 2 IP touch 7 (LAN+LAN)
