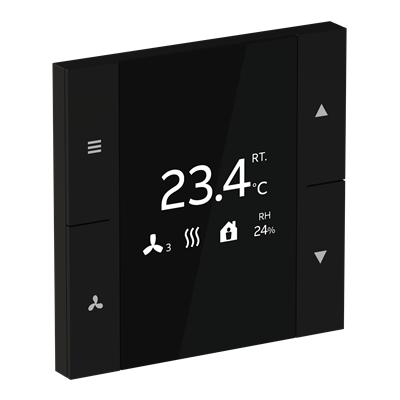

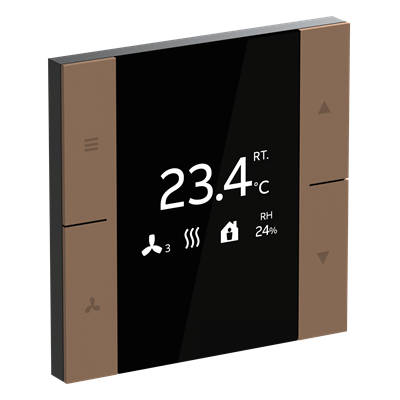

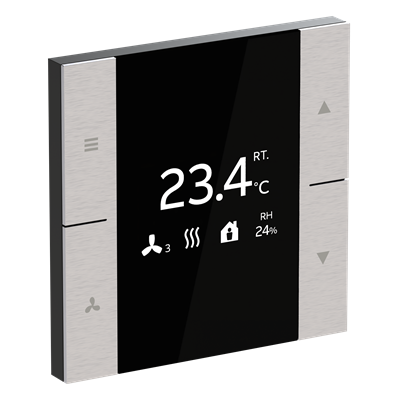

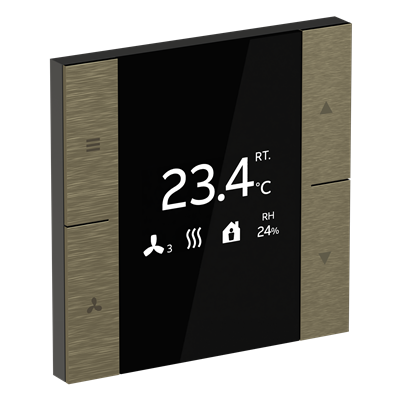

ABB i-bus® KNX control element is an innovative product of ABB's smart building control system, this product is suitable for public and commercial building installation. With a people-oriented design experience in mind, the control element looks simple yet is assembled with a combination of LCD screen with physical push buttons to give the user an intuitive operating experience. The control element can be used for various control functions such as lighting, air conditioning, floor heating, electric doors, blinds, and scenes, etc. At the same time, the flexible configuration and display of digital labels furthermore provide good features that can benefit customers in terms of cost and operation.
Features:
- Frameless design with integrated bus coupling unit
- Switching rocker on left / right equip with device locking and energy saving function
- With base-load operation. The controller is a room temperature controller suitable for ventilator convectors (fan-coil) in 2 and 4 pipe system heating and cooling systems
- Support Variable Refrigerant Flow system (VRF/VRV), Floor heating system and Fresh air system. Fan stage adjustable from the controller
- Dedicated RTC control button for easy access, can operate in Single/Master/Slave
configuration
- LCD display RTC: Setpoint/actual temperature, Fan speed, Operating state, Operating mode
- LCD Sub display configurable: time, PM2.5, CO2, Humidity, VOC, temperature
- LCD display labelling colour: red/green/blue/orange/white
- Temperature range (device): -5°C to 45°C.
- Dimensions (L x W): 86 mm x 86 mm
