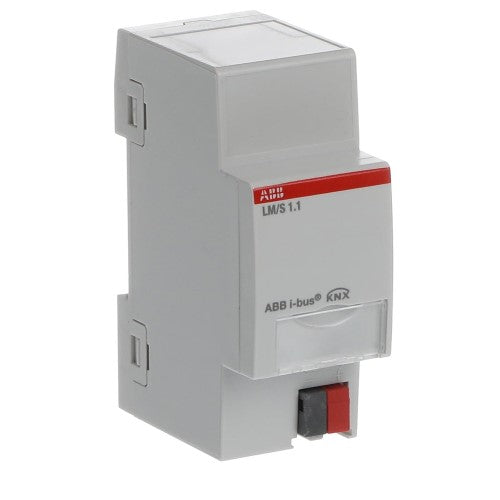

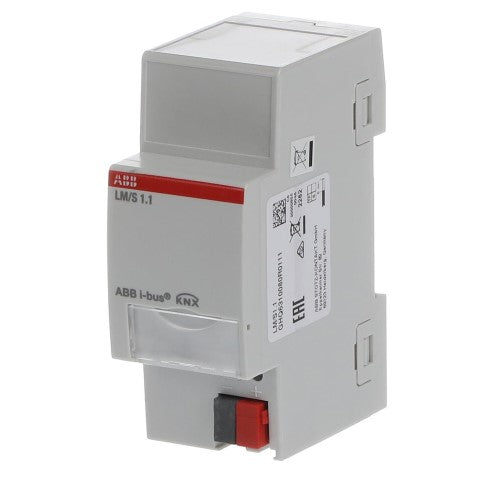

The logic module is a DIN rail mounted device for insertion in the distribution board. The connection to the EIB is carried out via a bus connecting terminal.
The logic module is used in more complex EIB installations in order to create special logic operations between sensors and actuators. At least 3 logic or time functions can always be set in each logic module both simultaneously and independently of each other.
The following functions can be implemented with the logic module:
- Logic gates
- Gate/filter
- Time delay
- Multiplier
- Min./Max. value indication
- Temperature comparator
- Toggle value
- Threshold value
- Format converter
- Scenes
- Counter
- Staircase light
Technical Data
| Number of communication objects : |
48 |
| Max. number of group addresses : |
250 |
| Max. number of associations : |
250 |
