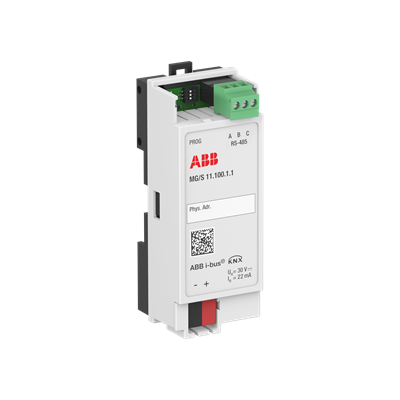

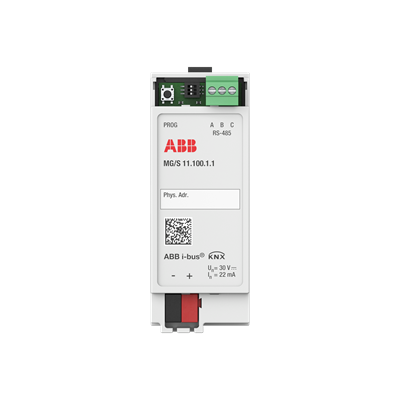

The Modbus KNX Gateway integrates Modbus RTU servers devices with KNX installations at field level. The devices support standard KNX data points (DPT) and up to 100 Modbus data points. The device is put into operation with the ETS. An optional, free-of-charge ETS-App (DCA) is available to facilitate the configuration, allowing to export, and import Modbus-KNX mapping in the form of templates. Modbus templates are available for download from a database. Auxiliary voltage is not required.
Technical data
| Supply |
|
|
|
Bus voltage |
21 … 33 V DC |
|
Current consumption, bus |
11 … 22 mA |
|
Power loss, bus |
≤ 0.58 W |
|
Power loss, device |
≤ 3 W |
| Connections |
|
|
Connection type, KNX bus: |
Plug-in terminal |
|
Cable diameter, KNX bus: |
0.6 … 0.8 mm, solid |
|
Connection type, Modbus: |
3-pole terminal block with screw locking (RS-485) |
|
Pitch: |
- KNX: 5.84 mm
- Modbus: 3.5 mm
|
|
Tightening torque, screw terminals: |
0.5 … 0.6 Nm |
|
Conductor cross section, fine stranded: |
- 1 x (0.5 mm2 ... 1.5 mm2)
- 2 x (0.5 mm2 ... 0.75 mm2)
- 3 x (not permissible)
|
|
Conductor cross section, single core: |
- 1 x (0.5 mm2 ... 1.5 mm2)
- 2 x (0.5 mm2 ... 0.75 mm2)
- 3 x (not permissible
|
| Device type |
KNX interface |
|
|
Modbus RTU – KNX TP Gateway 100 Points: |
MG/S 11.100.1.1 |
|
Application: |
Modbus RTU Gateway, 100p/...…
= current version number of the application |
|
Maximum number of Group Objects: |
- 205
- 100 Status Group Objects
- 100 Control Group Objects
- 4 Error Status Group Objects
- 1 optional Group Object for In Operation
|
|
Maximum number of group addresses: |
700 |
|
Maximum number of connections: |
700 |
|
Modbus interface |
|
|
Maximum number of Modbus addresses: |
254 |
|
Maximum number of data points: |
100 |
|
Maximum number of servers supported: |
100 |
|
Type of Modbus server: |
Modbus RTU (EIA-485) |
