Movement Detector HF KNX, Basic, IP55 BMH/U2.55.1

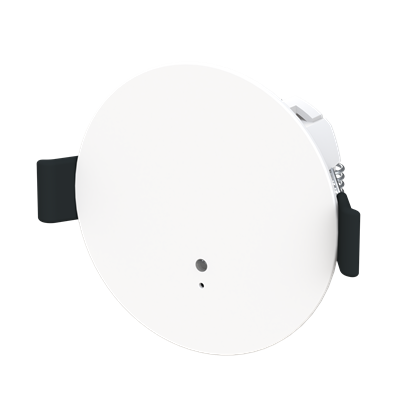

Movement Detector HF KNX, Basic, white, IP55

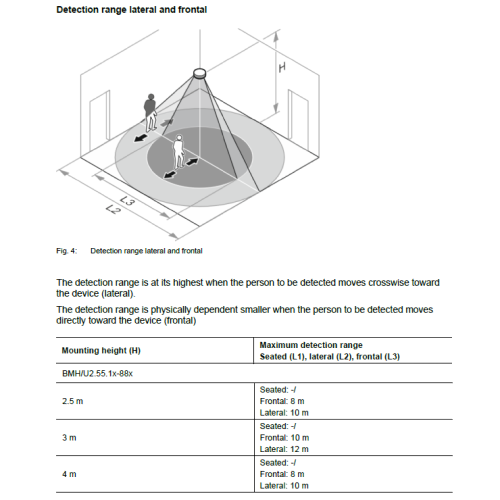

Detection Range (Circular):

• - Mounting height 2.5 m: Ø max. 10 m
• - Mounting height 3.0 m: Ø max. 12 m
• - Mounting height 4.0 m: Ø max. 10 m

Technology:

• - 5.8 GHz HF (High Frequency) radar technology
• - Penetrates materials such as drywall, wood, and glass
• - 2 independent channels
• - Integrated KNX bus coupler

Integrated Sensors:

• - Brightness sensor

Functions:

• - Movement detector with 2 power-off stages
• - Integrated monitoring/surveillance function
• - Constant light switching with up to 2 independent channels
• - Brightness-dependent switching of two light circuits
• - KNX Data Secure

Installation Options:

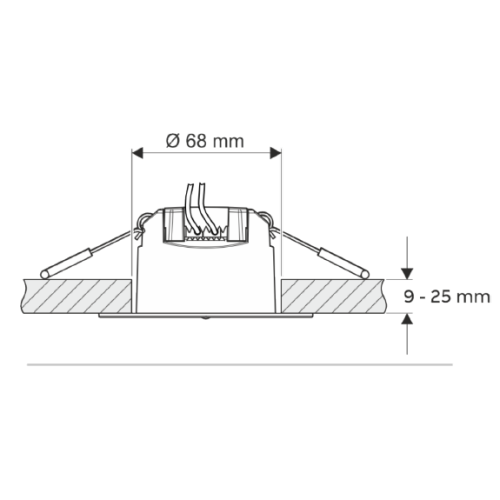

• - Recessed ceiling: Hole size Ø 68 mm
• - Surface mounting: With PMA/A1.xx-88x housing
• - British Standard box: PMA/K1.1-88x
• - VDE flush-mounted box: PMA/K2.xx-88x
