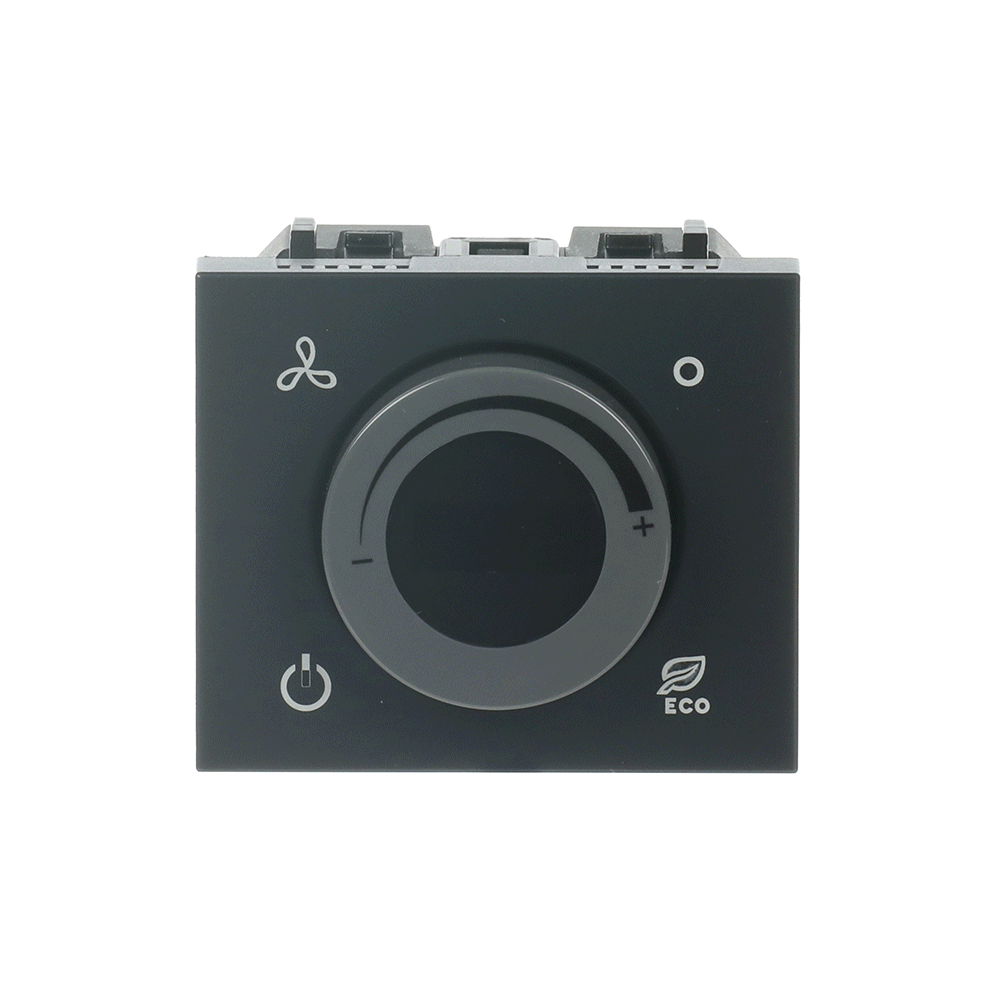

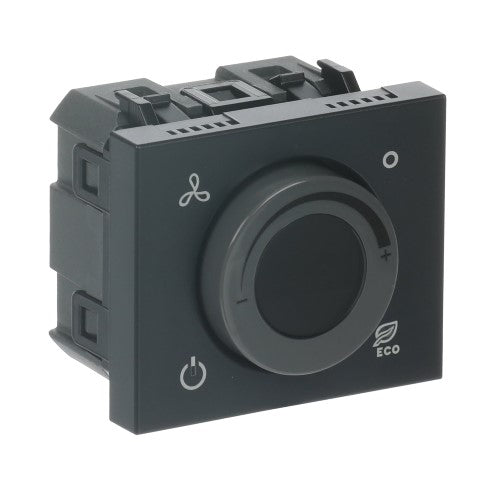

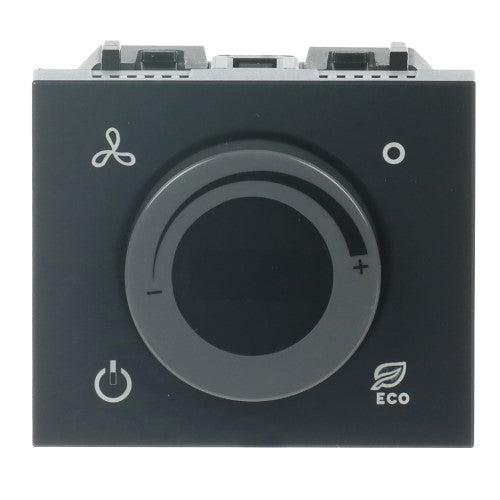

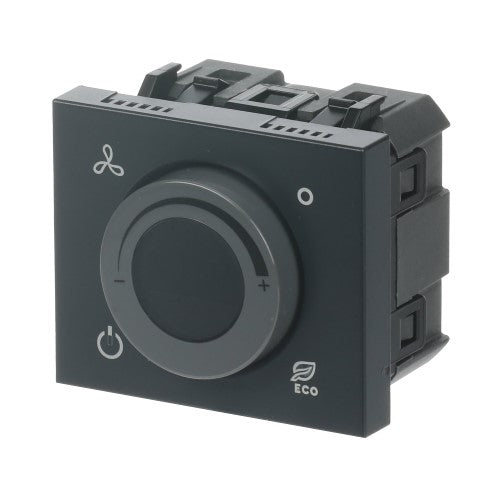

Control element with room thermostat function for triggering the heating, ventilation and fancoil
actuators. The controller is a thermostat for Fan Coil units in 2- and 4-pipe systems and
conventional heating or cooling systems. The fan stage can be switched manually or in automatic
mode. Incl. 10 logic channels (light scene actuator, sequence actuator, logic gates, etc.).
Switch contacts for operating mode selection and dial for setpoint or fan speed adjustment.
Display elements: LCD showing operation modes. Protection class (Device): IP 20.
Temperature range (Device): – 5 °C to 45 °C. Dimensions: (L x W x D): 53 mm x 44 mm.
