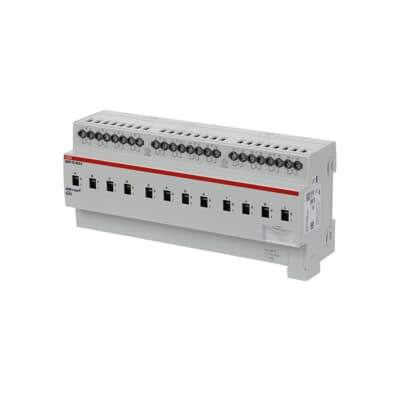

The switch actuator uses potential free contacts to switch 12 independent electrical loads via the ABB i-bus® KNX. The device features a manual operation and displaying of the switching state of the outputs.
The 16/20 A, 16 A-AC3 (C-load) device is especially suited for loads with high surge currents e.g. flourescent lighting acc. EN 60669.
| Voltage Range: |
230 V AC
|
| Auxiliary Voltage AC/DC: |
KNX
|
| Output Voltage (Uout): |
230 V AC
|
| Rated Current (In): |
20 A
|
| Maximum Switching Current: |
20 A
|
| Maximum Switching Power: |
3680 W
|
| Load Type: |
Resistive Load, Capacitive Load, Inductive Load
|
| Power Loss: |
12 W
|
