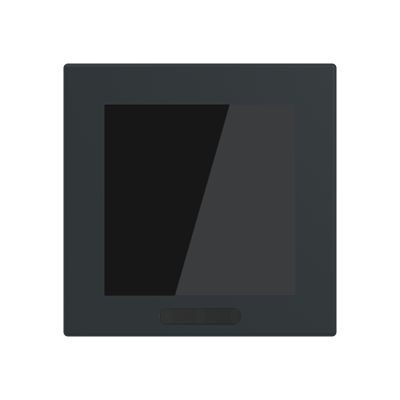

Freely programmable Touch panel 1 – up to 12 fold featuring a 2.4-inch IPS screen with 240*240 resolution that offers home control and monitoring of the free@home, or KNX system. Control, observe and manage your entire installation on one device: Switching - Dimming - Slider - Blind - RGBW control element - Step switch - Scene switch - Display element - Audio control element. With scene function, logic functions, presence simulation and time programs.
The display are for the ranges:
Busch-Jaeger
- future® linear
- solo®
- Busch-axcent®
- Busch-dynasty®
- pure stainless steel.
KNX and free@home functions:
- A total 12 control elements are displayed on a maximum of 12 pages.
- 12 fault and alarm messages
- 10 logic functions
- 10 weeklytimers
- 10 scene actuators
- 1 Integrated temperature controller (RTC)
- Page display with a maximum of 4touch surfaces on one page
- Primary function 18 fault and alarm messages
- Integrated temperature sensor.
- Haptic feedback
- proximity sensor
- brightness sensor
- 1 binary input or external temperature sensor input (PT1000 / 6226/T).
External power supply needed: 20-32 VDC (SELV)
Number of bus subscribers: 1
Optional Removal protection: TZE/U.0.xx.CK
Display size: 6,10cm (2.4”)
Display resolution: 240*240
Display screen: IPS display
Dimensions (L x W x D): (63mm x 63mm x 32mm)
Display surface: glass black (-825)
Class of temperature controller 1 Contribution to space heating energy efficiency 1,0%.
