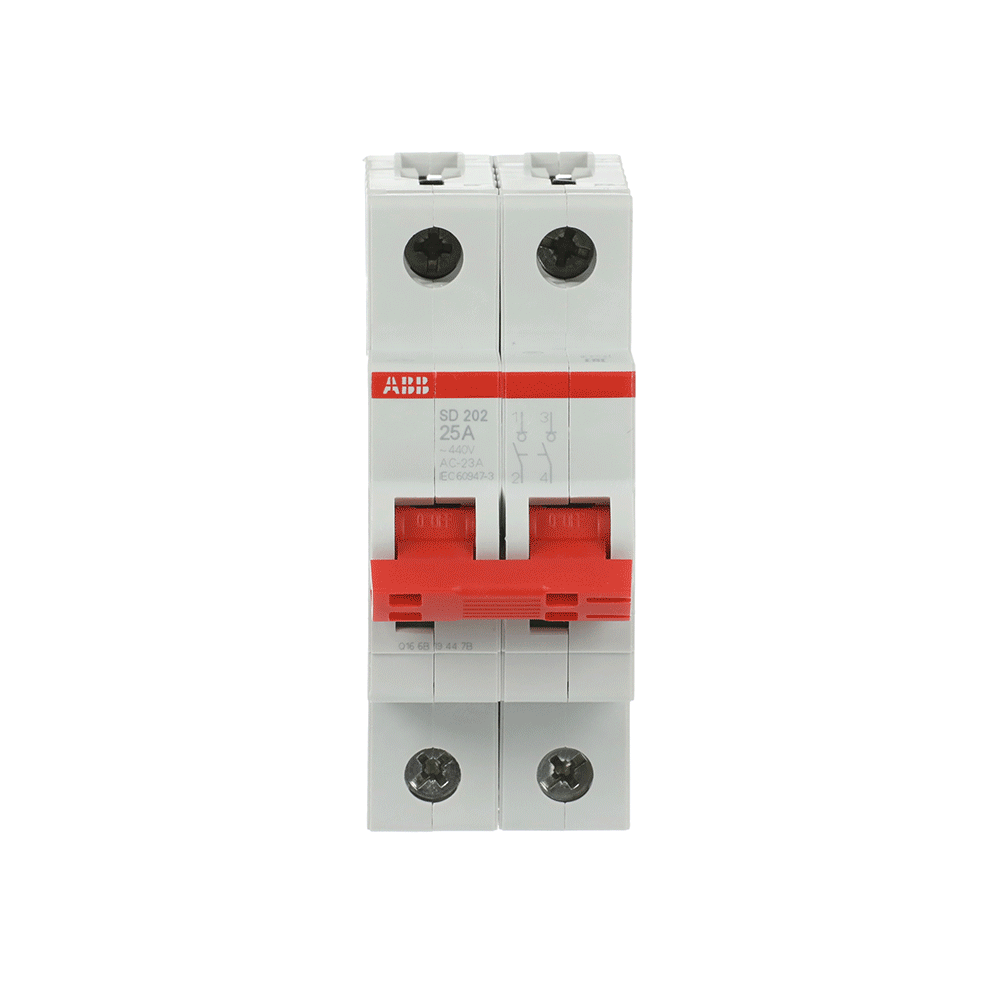

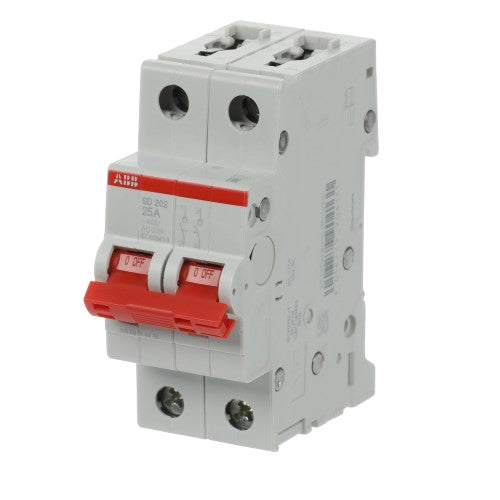

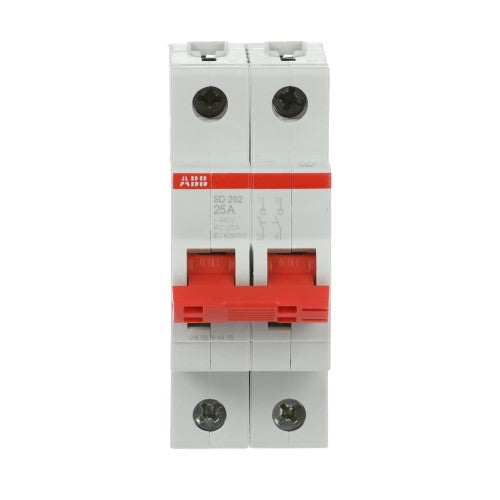

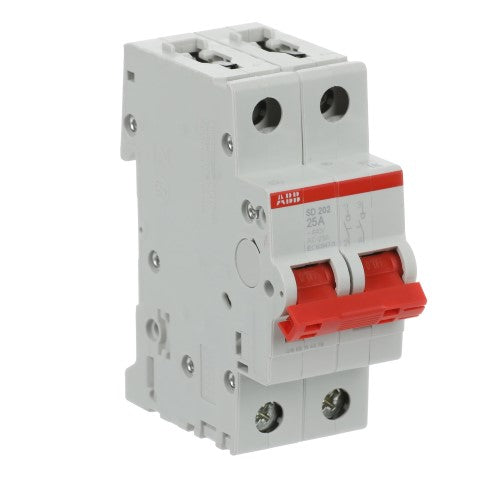

SD202/25 Switch Disconnector 2P 25A

Name: SD202/25 Switch Disconnector 2P 25A
Brand: ABB
SKU: 2CDD282101R0025
Price: 42.22 GBP
Availability: InStock

ABBSKU: 2CDD282101R0025

Price:

£42.22

VAT calculated at checkout

Stock:

Call For Availability

Quantity:

Share this product

Contact Position Indication: ON / OFF

Electrical Endurance: 20000 AC cycle

Mechanical Endurance: 20000 cycle

Number of Poles: 2P

Tightening Torque: 2.8 N·m

Utilization Category: Switching of motor loads or other highly inductive loads - frequent actuation (AC-23A)

Switching of resistive loads, including moderate overloads - frequent actuation (DC-21A)

Screw Terminal Type: Failsafe Bi-directional Cylinder-lift Terminal

Switch Type: Off

Actuator Marking: I / O

Actuator Material: Insulation Group II, Red, Sealable

Recommended Screw Driver: Pozidriv 2

Accessories Available: Yes

Cover Color: Grey

Connecting Capacity: Busbar 10/10 mm²

Flexible with Ferrule 0.75 ... 25 mm²

Flexible 0.75 ... 25 mm²

Rigid 0.75 ... 35 mm²

Stranded 0.75 ... 35 mm²

Installation Size: acc. to DIN 43880 3

Terminal Type: Screw Terminals

Actuator Type: Toggle

Installation: Din Mounted

Module Size: 2 Module
