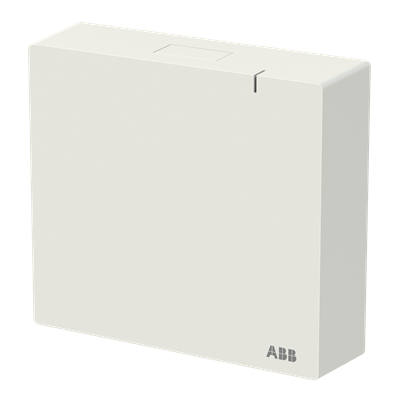

For commissioning and remote control of the ABB-free@home® system. Support for up to 150 free@home participants (independent of whether wireless or wired). With integrated free@home wireless antenna. With integrated free@home bus connection. Easy to mount thanks to the external USB-C Power Supply (included in the scope of delivery).
Optional supply via the yellow/white twisted pair of the bus line (24 V). Allows the execution of astro and time programs. Commissioning and remote control is executed via the web interface or app. No additional commissioning software is required. Easy commissioning with WLAN ad-hoc mode. Connection to the home network via WLAN client mode or via CAT cable. Suitable for wall mounting.

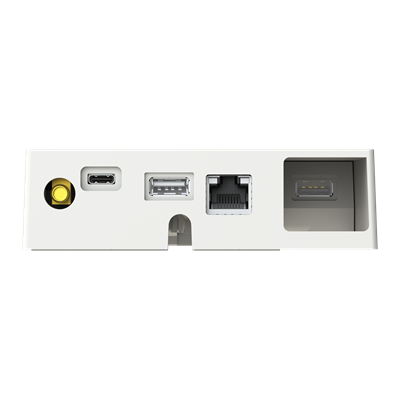

- 2 x USB ports for future extension of functions.
- 2.4 GHz and 5 GHz WLAN
- 1.4 GHz dual core processor
- 1 GB internal memory
- Scope of delivery: Mounting plate, USB-C Power Supply.

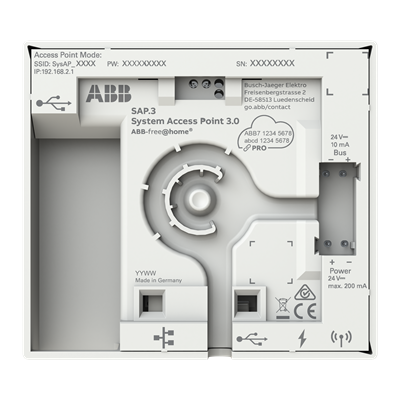

- The bus connection is provided via the enclosed bus terminal.
