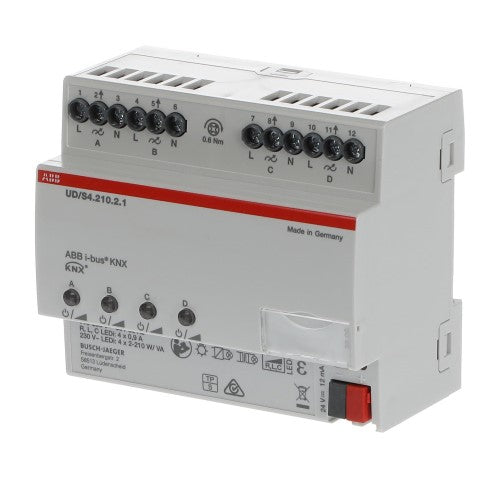

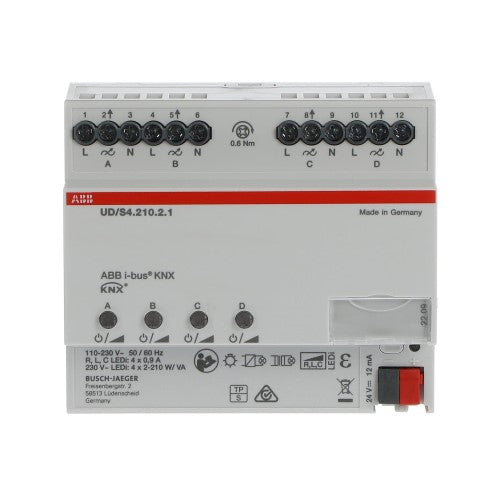

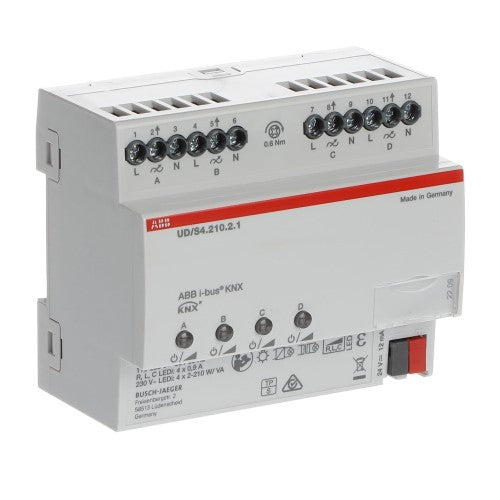

Multichannel universal dimming actuator optimised for dimming retrofit LED lamps (LEDi). Also suitable for dimming incandescent lamps, low-voltage halogen lights with conventional or electronic transformers, 230 V halogen lamps and dimmable energy-saving halogen lamps.
Features
- Automatic load detection (can be deactivated).
- Separate N-connection per channel.
- Parallel connection of the outputs possible to increase the output power.
- Outputs can be connected in parallel in any configuration.
- Minimum load: 2 W.
- Manual operation on device also possible without bus voltage or in an unprogrammed status.
- Programming of the device also possible without applied 230V supply voltage.
- Extensive test and diagnosis functions for the i-Bus tool.
- Fast parameter setting in ETS using copyable channel templates.
- With integrated bus coupler.
Technical Data
- Nominal power at 230 V~ mains voltage: 230 V~
- Incandescent and halogen lamps: 4 x 210 W/VA to 1 x 600 W/VA.
- Dimmable 230 V~ LEDi: 4 x 210 W/VA to 1 x 600 W/VA in trailing edge control, 4 x 80 W/VA to 1 x 200 W/VA in leading edge control.
- Inductive L-transformers with LED/low-voltage halogen lamp: 4 x 210 W/VA to 1 x 600 W/VA.
- Electronic C-transformers with LED/low-voltage halogen lamp: 4 x 210 W/VA to 1 x 600 W/VA.
- Electronic LC-transformers with LED/low-voltage halogen lamp: 4 x 80 W/VA to 1 x 200 W/VA.
