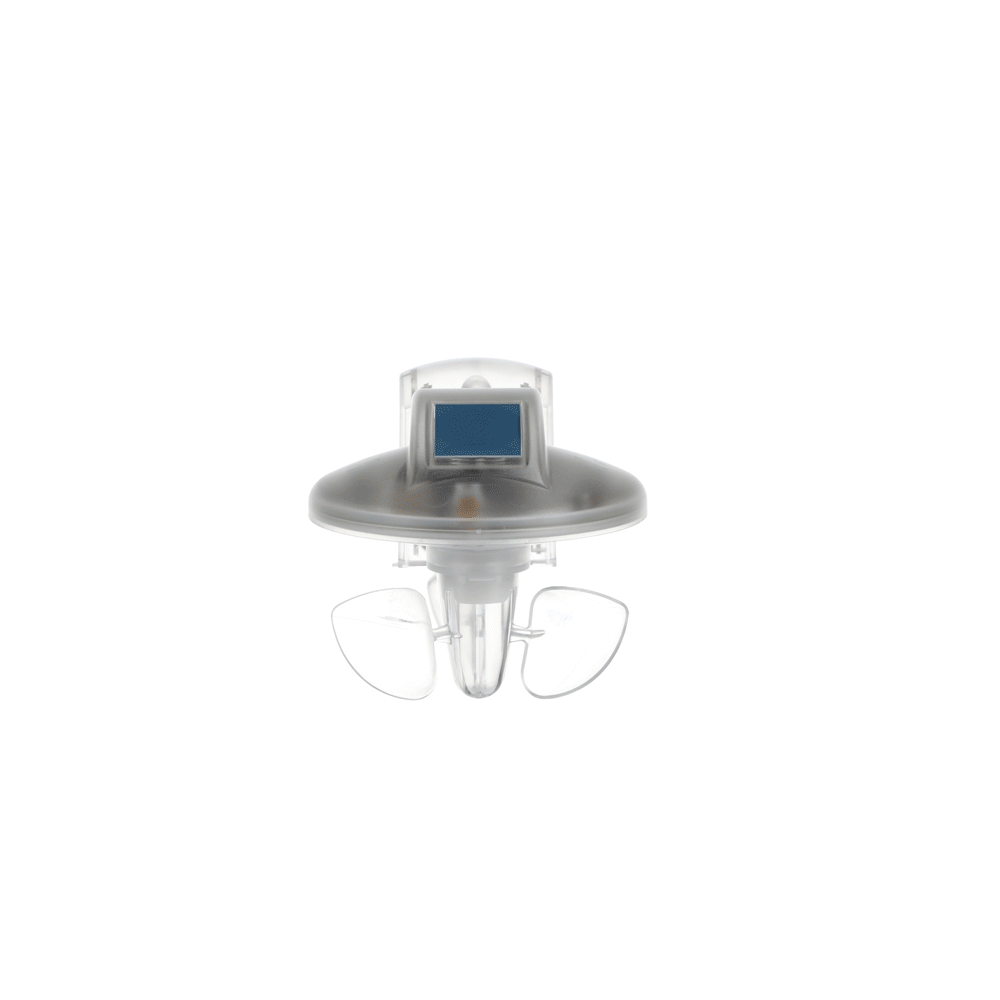

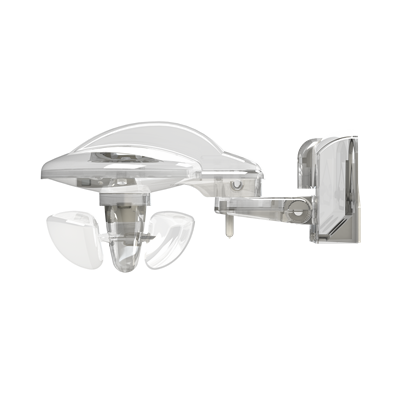

For recording and transmitting of brightness, temperature, wind speed and rain. Weather data can be linked with actuators to automatically control functions. Weather data can be visualized in the free@home web interface and the free@home app.
Mains Power Required
Features
- With 3 Brightness Sensors.
- With a temperature sensor.
- With a windspeed sensor.
- With a rain sensor.
- Weather data can be linked with actuators to automatically control functions.
- Weather data can be visualized in the free@home web interface and the free@home app.
- The bus can be connected via enclosed terminal block.
- ABB-free@home app for commissioning of basic and add-on parameters.
- Programming only under connected bus voltage.
- Wind speed measuring range 2 - 30 m/s
- Brightness limiting values: 1 - 100.000 Lux
- Bus voltage: 24 V
- Power Supply for the Rain Sensor: 110V - 230V AC
- Temperature range device: -20°C - 55°C
- Storage temperature device: -20°C - 70°C
