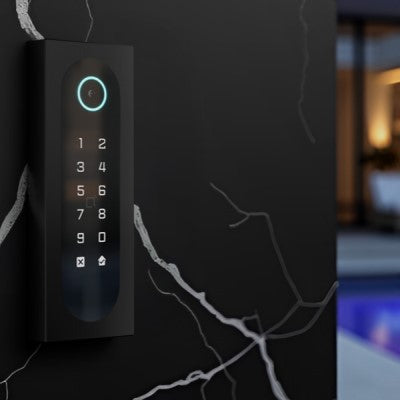

Accédo Key is a slim access control device that combines a door controller and a card reader in a single device, providing significant cost savings for building managers. It offers flexible access technologies, including PIN code, QR scan and RFID cards, all in one device. Accédo Key has an integrated controller and a single LAN cable is all that is needed for connection and power supply (PoE). In the simplest configuration, it can operate in stand-alone mode, but can also be integrated into a complete solution with Delego Server as the manager of the entire access control system.
Technical data
- Power supply: PoE and/or 12 Vdc connector 1 A
- POE 802.3af (< 15.4W)
Interfaces
- Ethernet (LAN) port: RJ45, adaptive 10/100Mbps
- Recommended cable: Cat-5e or higher
- Output power: 12V@ 600mA
- Relay output: 1 relay
- Inputs: 2 inputs
- Wiegand: supported
Delivery
- Access control device (Accédo key)
- Wiring cover
- Installation screws
- Rubber plugs for cable fixing
- Ethernet cable and connector
- 8-pin flat cable
- Diode
Functions / Features
- RS485 port: for safety relay EK-SR1-VI
- Tamper alarm: supported
- Audio: 8Ω / 0.5W
- Supported protocols: IPv4, HTTP, HTTPS, FTP, DNS, NTP, TCP, UDP, ICMP, DHCP, ARP
- Aluminium alloy chassis with tempered glass
- IP65 and IK09 protection ratings
- Capacity for 20,000 cards and 100,000 event logs
- Multiple access methods: QR code, Bluetooth, PIN, RFID
- Flush and surface mounting
- Front panel: tempered glass / Frame: black aluminium
- Operating temperature: -20 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Operating relative humidity: 10% ~ 90% (non-condensing)
- Dimensions Accédo Key (W x H x D): 50 x 140 x 26.7 mm
- Dimensions flush box (W x H x D): 50 x 140 x 14 mm
- Supported frequencies for RFID card reader: 125 kHz and 13.56 MHz
- Keypad with capacitive touch technology
- Displays: backlit numbers, acoustic response to each touch of the keyboard
- QR code reader with stand-alone operation only when connected to the cloud with the Dico app; local (and remote) operation in combination with Delègo server
- Installation with flush-mounting (with optional flush-mounting box code EK-ACC-KEY-IW) or wall-mounting
