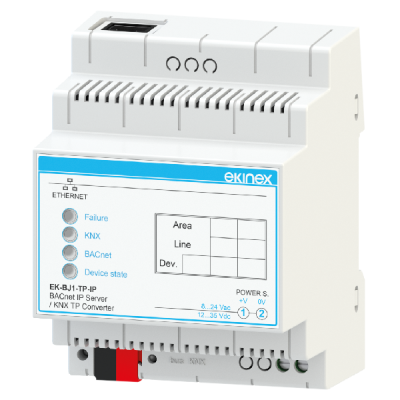

The Ekinex® BACnet - KNX Gateway performs a protocol conversion between a BACnet and a KNX TP network. Two versions are available: BACnet MS/TP (master-slave / token-passed) over serial RS485 network and BACnet IP over Ethernet. The device integrates a KNX bus communication module and it is suitable for mounting on a 35 mm DIN rail; it requires an auxiliary power supply.
Technical data
- Power supply: 8...24 Vac or 12...35 Vdc
- Absorption at 24 Vdc: 3,5 VA
Communication
KNX side
- KNX TP (Twisted Pair) communication port electrically isolated from power supply
- 1440-byte volatile support “KNX image” memory buffer
BACnet (MS/TP version) side
- RS485 serial communication port, electrically isolated from power supply, 120 ohm termination resistance pluggable by a 1-way microswitch
- BACnet communication
- Selectable baud rate from 1200 to 115200 baud
- BACnet objects exchange
- 1440-byte volatile support “BACNet image” memory buffer
BACnet side (IP version)
- Ethernet communication port (IEEE 802.3), RJ45 connector, minimum cable category:
- 5E.Communication BACnet slave
- BACnet objects exchange
- 1440-byte volatile support “BACNet image” memory buffer
Configuration
Ethernet communication port (IEEE 802.3), RJ45 connector, minimum cable category: 5E.
