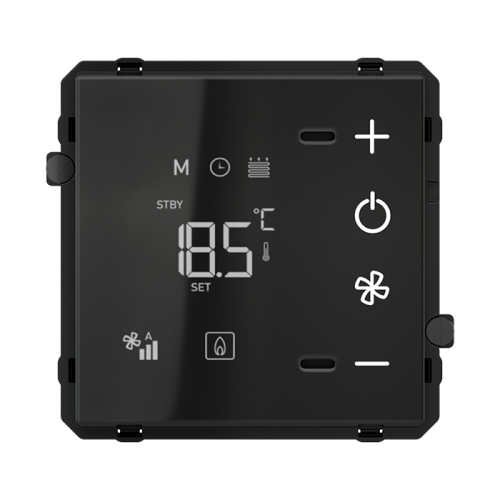

CLIMA EASY Room Thermostat

CLIMA: Comfort control becomes part of the interior design. The CLIMA room thermostat combines aesthetics and technology in a new control experience: intuitive for those who live in the space, advanced for those who design it.

CLIMA is used for the independent regulation of the temperature in a room or zone. In combination with one or more KNX actuators and/or KNX VRF/VRV interfaces, the thermostat is capable of controlling the heating or cooling output of a range of room-based heat exchange terminals such as radiators, fan coil units, underfloor and ceiling radiant panels, and indoor air conditioning units. The device is fitted with an LCD display and touch buttons with adjustable backlighting, as well as a sensor for measuring room temperature and relative humidity.

Thanks to its simplified user interface with a single on/off operating mode, it allows for immediate use, making it particularly suitable for hospitality applications and non-permanent residential situations. The device features an integrated KNX bus communication module and is designed for flush-mounted installation in a wall box; it is powered via the KNX bus and requires no auxiliary power supply.

Technical data

• Power supply: 30 Vdc via the KNX bus
• Current draw from the bus: < 13 mA

Delivery

The delivery includes a terminal for connection to the bus line and two pairs of screws.

Accessories

The following accessories are available to complete the installation and must be ordered separately according to the desired configuration:

• square frame, ‘Form’ version
• square plate with a 60 × 60 mm window
• plastic adapter
• metal bracket for mounting on a round or square box (hole centre-to-centre distance 60 mm)
