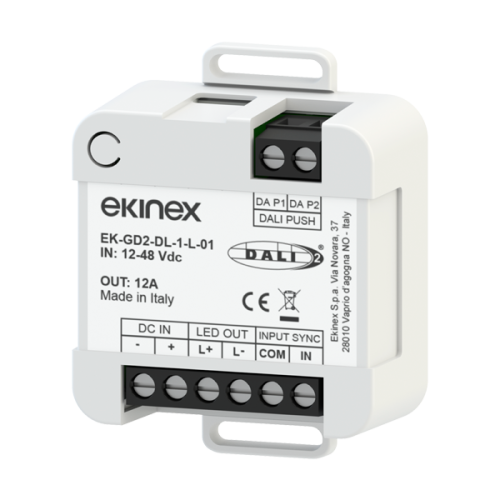

DALI dimmer 12/48 Vdc 1 channel multifunction

The EK-GD2-DL-1-L-01 device is a very low voltage 12, 24 and 48Vdc PWM dimmer suitable for controlling LED strips and PWM dimmable LED loads. The dimmer can be controlled via DALI1 or DALI2 bus, push-button control (N/O - normally open) at mains voltage or 12/24/ 48 V mains voltage, 0-10V or 1-10V analogue signal from an active actuator (which generates a variable voltage between 0 and 10V) or passive actuator, 47kW linear potentiometer or presence sensor. The operating modes of the EK-GD2-DL-1-L-01 dimmer can be selected via onboard dip-switches.

Technical data

Inputs

• Constant input voltage: 12/48 Vdc
• Supply voltage: min: 8 Vdc .. max: 53 Vdc
• Control: DALI2 / 0-10V / 1-10V push / potentiometer / switch / sensor / phase cut

Outputs

• PWM voltage output 12/24/48 Vdc
• Output current: 12A
• Outputs: 1
• Nominal power: 120 W @12V, 288 W @24V, 576 W @48V
• Load type: single colour Dimming
• PWM frequency: 390Hz-3000Hz

Dimming

• PWM frequency: 390Hz-3000Hz
