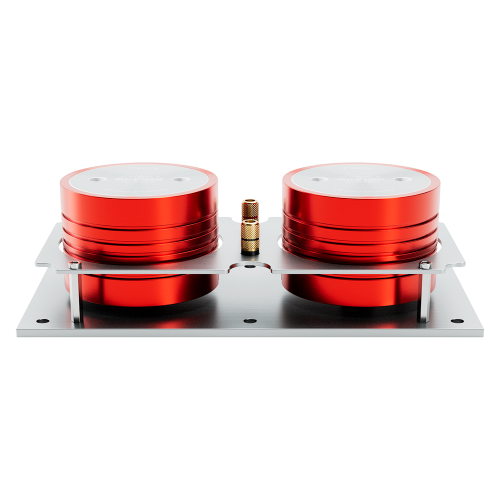

Invisible TWIN represents the cutting edge of our acoustic energy transmitters. Designed to improve response in both low and high frequencies, it provides increased power, dynamics and sonic accuracy. Also ideal for audio-video systems, with a nominal impedance of 8Ω, Invisible TWIN facilitates the operation of commercial AV receivers by reducing operating temperatures and improving efficiency.
Made of the highest quality materials, the base is 3 mm thick AISI 304 stainless steel, while the bodies of the two transmitters are AW 6082 aluminum, known for its balance of workability and strength, thanks in part to anodizing that prevents degradation over time and improves heat dissipation. The eight internal nylon and steel suspensions, together with dual thermal and electrical protections, ensure long service life and reliability.
Invisible TWIN takes advantage of the characteristics of a wide range of materials to which it can be applied, such as plasterboard, wood, glass, e-bond, plexiglass, fiberglass and carbon fiber, aluminum, and many others. It can reproduce audio signals either omnidirectionally or directionally, depending on the installation (more information on our website).
The two integrated transmitters are different but complementary, optimized to provide a superior audio experience. Listening tests, conducted with in-wall plasterboard back-boxes (available soon as accessories), showed amazing performance, outperforming conventional listening systems.
Invisible TWIN offers a frequency response extending from 40 Hz up to 15,000 Hz, ensuring exceptional sound quality tested at every stage of the production process. The completely invisible installation matches perfectly with the EK-PW1-AU amplifier, specifically designed to maximize system performance.
Functions / Features
-
Impedance: 8 Ω
-
Frequency response: 40 - 15,000 hz nominal
-
Maximum power: 240 w
-
Maximum power - RMS: 80 w
-
Height: 46 mm
-
Contact plate diameter: 160 x 80 mm
-
Weight: 880 g
-
Color: Red and Gray
