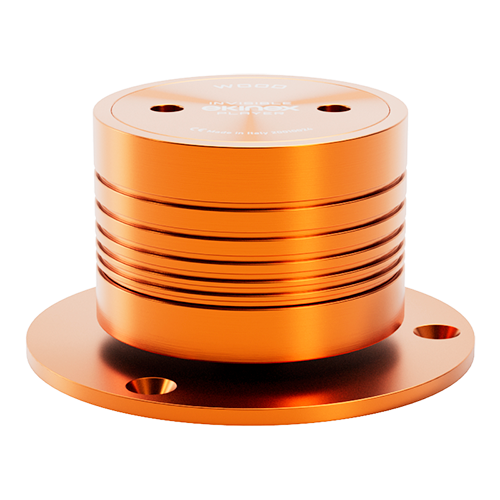

Invisible WOOD is an acoustic energy transmitter made from the highest quality materials. The AW 6082 aluminum body provides the best compromise between precision machining, anodization to prevent degradation over time, and effective heat dissipation. The four internal suspensions, made of nylon and steel, contribute to its durability and strength, while the triple internal protection, both thermal and electrical, prevents failures.
Invisible WOOD is designed and optimized for excellent performance on wood surfaces with thicknesses between 18 mm and 25 mm, depending on the type of wood. However, it is not suitable for ground- or wall-anchored surfaces, such as parquet or solid glued siding. A small back gap, even a few millimeters, is required for proper operation.
Invisible WOOD can also be installed on other materials such as E-bond, T-bond, plexiglass, lexan and fiberglass, with a maximum thickness of 12 mm. For optimal performance, we recommend pairing it with the EK-PW1-AU amplifier, designed specifically for its characteristics.
Functions / Features
-
Impedance: 4 Ω
-
Frequency response: 40 - 14,000 hz nominal
-
Maximum power: 120 w
-
Maximum power - RMS: 40 w
-
Height: 46 mm
-
Diameter: 57 mm
-
Contact plate diameter: 83 mm
-
Weight: 310 g
-
Color: Orange
