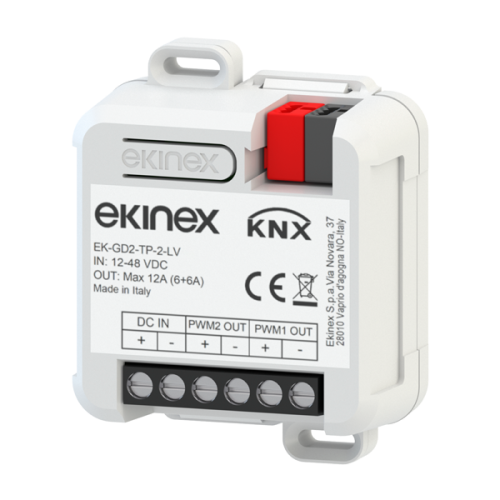

The EK-GD2-TP-2-LV 2-channel KNX 12/24/48 Vdc dimmer allows brightness control in constant voltage (CV) PWM mode for LED loads. Specifically designed for dimmable LED strips and loads, it is compatible with the KNX system and ideal for monochromatic and CCT strips with dynamic white (TW). The device has an integrated SELV 30 Vdc bus communication module, KNX certified.
Technical data
Inputs
- Supply voltage: min: 10.8 Vdc, max: 52.8 Vdc
- Constant input voltage: 12 / 24 / 48 Vdc
Outputs
- PWM voltage output 12/24/48 Vdc
- Output current: 6A per single channel, or 12A for 2 channels connected in parallel
- Output channels: 2
- Nominal power per single channel: 72W @12V, 144W @24V, 288W @48V
Dimming
- PWM dimming mode in the range 250 Hz ÷ 6 kHZ
- Dimming range: 1-100%
Supply
The supply includes a terminal for connection to the bus line.
