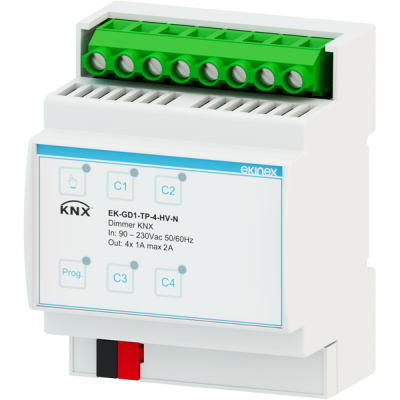

KNX bus device with 4-channel phase cut dimmer function for light loads, with supply voltage 90-230 Vac at 50/60 Hz. For use in KNX-standard home and building automation systems. Suitable for simplifying the connection of loads.
Technical data
Inputs
- Supply voltage: 90-230 Vac 50/60 Hz
- Max. input current : 2 A
Outputs
- Supply voltage: 90-230 Vac 50/60 Hz
- Output power per channel: 110 W @110 Vac, 220 W @220 Vac, 230 W @230 Vac
- Minimum load power: 1 W per channel
- Maximum current per output: 1 A per channel (parallelisable)
- Maximum total current: 2 A
- Terminals: screw terminals (max. 4 mm2 )
Dimming
- Dimming modes: Trailing Edge, Leading Edge (also selectable via ETS) and AI Edge (optimised for 230 Vac LED strips)
- Dimming range: 1-100%.
NOTES
The loads that can be used with the dimmer are: incandescent lamps, mains voltage halogen lamps, mains voltage dimmable LED lamps, mains voltage dimmable LED strips, switching power supplies for phase cut dimmable LEDs. The dimmer cuts the phase in "trailing edge" mode.
