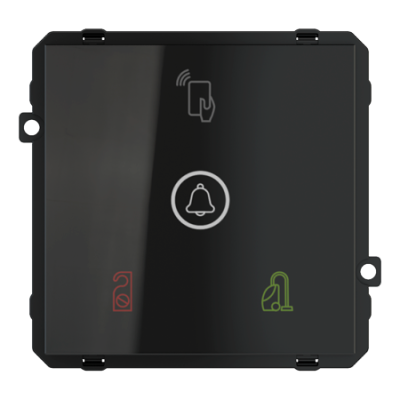

The EK-TO2-TP card reader allows cards to be read simply by bringing them close to the device, up to a maximum distance of 20 mm, enabling access based on the configured authorisations. Equipped with a backlit display and an integrated KNX bus communication module, the device combines reliable performance with a refined design. It is powered by SELV voltage via KNX bus and requires an auxiliary power supply of 12–24 Vac or 12–32 Vdc. Available in white or black, it is compatible with the Form, Flank, 'NF, Deep and Surface versions with a 60 mm window, for perfect aesthetic integration into any environment.
Technical data
- 30 Vdc power supply via KNX bus
- 12-24 Vac or 12/32 Vdc auxiliary power supply
- Card reader with MIFARE 13.56 MHz RFID technology
Delivery
The delivery includes a terminal for connection to the bus line, a plastic bracket for mounting on round or square boxes (hole centre distance 60 mm) and two pairs of screws.
Accessories
- EK-TCE-10 smart card (Ekinex® logo in black, pack of 10 cards) or EK-TCC-10 (customised with customer logo, on request)
- square frame, Form or Flank version
- square plate with 60 x 60 mm window
- plastic adapter
