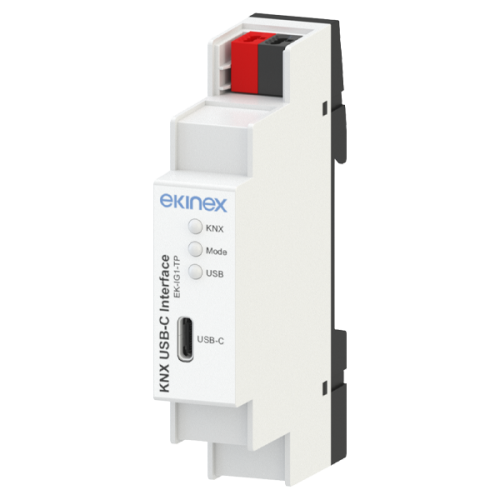

The EK-IG1-TP device can be used as a programming interface for ETS® software and supports KNX long frames. Long frames enable faster downloads to devices that support them and are required for KNX security.
The LEDs on the device indicate the operating status and communication errors on the bus. The USB connector (USB Type-C) is galvanically isolated from the KNX bus.
Technical Data
Power Supply
- Power supplied via the KNX bus (21–30 Vdc)
- Power via USB: no external power supply required.
- Current consumption: <15 mA from the KNX bus, <3 mA from the USB-C port
Connectors
- KNX TP bus connector (red/black)
- USB: Type-C connector, maximum cable length: 5 m
Environmental conditions
- Operating ambient temperature: -5 ... +45 °C
- Non-operating ambient temperature: -25 ... +70 °C
- Relative humidity (non-condensing): 5 ... 93 %
Other features
- Plastic housing (PC)
- Mounting on 35 mm rail (according to EN 60715)
- IP20 protection rating (device installed, according to EN 60529)
- Equipment class III (according to EN 60664-1)
- Climate class 3K5 and mechanical class 3M2 (according to EN 50491-2)
- 1 modular unit (1 unit = 18 mm)
- Weight 40 g
- Dimensions (WxHxD): 17.8 x 90 x 60 mm
