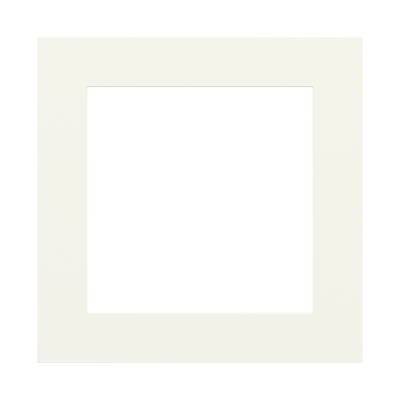

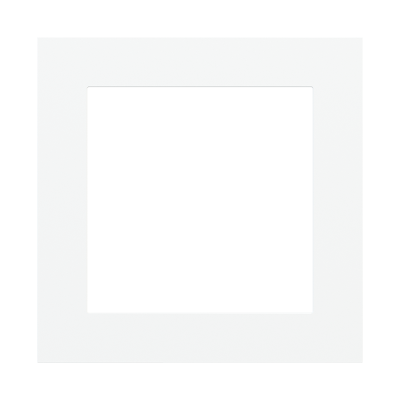

Square plastic plate 55x55 window

Square plate for completing junction or control points equipped with components from the commercial civil series (e.g. sockets or switches) and/or Ekinex devices. Available in numerous colour and material variants. The basic code must be completed with the material, colour and finish extension.

'NF

• EK-PQP-... = 45x45 mm window
• EK-PQG-... = 55x55 mm window
• EK-PQS-... = 60x60 mm window
• EK-PQN-... = 50x50 mm window (Movement sensor)

DEEP

• EK-DQP-... = 45x45 mm window
• EK-DQG-... = 55x55 mm window
• EK-DQS-... = window 60x60 mm
• EK-DQT-... = 30x60 mm window (20venti series)*.
• EK-DQV-... = 30x60 mm window (Signum series)*.
• EK-DQN-... = 50x50 mm window (Movement sensor)

SURFACE*

• EK-SQP-... = 45x45 mm window
• EK-SQG-... = 55x55 mm window
• EK-SQS-... = window 60x60 mm
• EK-SQT-... = window 30x60 mm (20venti series)
• EK-SQV-... = 30x60 mm window (Signum series)
• EK-SQN-... = 50x50 mm window (Movement sensor)

Mounting

with plastic adapter to be ordered separately.

*(not available in plastic)
