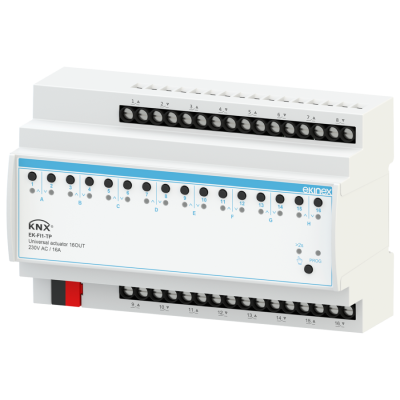

ÆVO built to last - Unbreakable reliability and resilience for a hassle-free tomorrow. The universal actuator EK-FI1-TP of the ÆVO-Series allows the control of up to 16 groups of electrical consumers, such as lights and valves, or the control of up to 8 motorised drives, such as blinds and 3-way valves, independently and in any combination; for this purpose the device has outputs with potential-free relay contacts. The device's bistable relays ensure that the set control status is maintained even in the event of a power failure on the bus. The device is equipped with buttons for manual operation and LEDs for status indication; a button is used to switch between automatic and manual operation. The device has an integrated KNX bus communication module and is designed for mounting on a 35 mm profile rail. Power is supplied via the KNX bus and no auxiliary power supply is required.
Technical data
Power supply
- Voltage 30 Vdc via KNX bus
Outputs
- Number: 16 (bistable relays)
- Voltage 230V AC
- Current: 16 A
