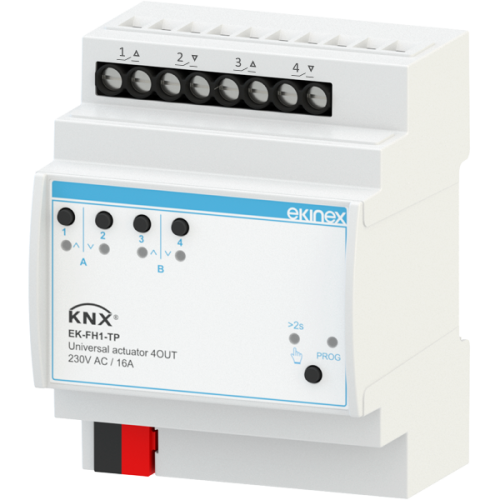

ÆVO built to last – Unbeatable reliability and durability for a worry-free future. The EK-FH1-TP universal actuator from the ÆVO Series allows you to control up to 4 groups of electrical loads, such as lights and valves, or to control up to 2 motorised actuators, such as venetian blinds and 3-way valves, either independently or in any combination you choose; to this end, the device features outputs fitted with potential-free relay contacts. The device’s bistable relays ensure that the set control status is maintained even in the event of a power failure on the bus.
The device is fitted with buttons for manual control and LEDs to indicate its status; one button allows you to switch between automatic and manual operation. The device features an integrated KNX bus communication module and is designed for mounting on a 35 mm profile rail. Power is supplied via the KNX bus and no auxiliary power supply is required.
Technical data
Power supply
- Voltage 30 Vdc via KNX bus
Outputs
- Number: 8 (bistable relays)
- Voltage 230V AC
- Current: 16 A
Delivery
Delivery includes a terminal block for connection to the bus.
