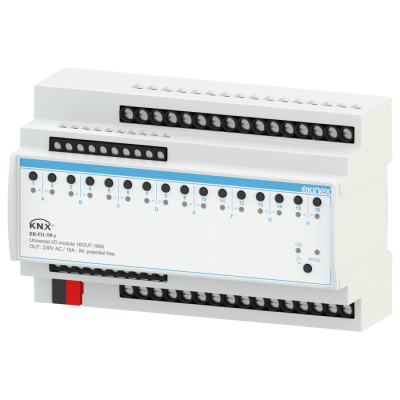

ÆVO built to last - Unbreakable reliability and resilience for a hassle-free tomorrow. The EK-FI1-TP-I universal I/O module from the ÆVO Series allows you to control up to 16 groups of electrical devices, such as lights and valves, or up to 8 motorized drives, such as blinds and 3-way valves, independently and in any combination you like. for this purpose, the device has outputs equipped with potential-free bistable relay contacts that guarantee that the set control status is maintained even in the event of a power failure.
In addition, EK-FI1-TP-I allows the control of up to 16 drives, scenarios, up to 8 motors, dimmers, or the climate control of up to 8 rooms using the integrated thermostat/hygrostat function, by reading traditional commands and sensors equipped with potential-free contacts or passive NTC temperature probes. For this purpose, the device has 8 digital inputs and 8 analog/digital inputs that can be configured independently with interrogation voltage produced inside the device.
The product is equipped with buttons for manual control and LEDs for status indication; a button allows switching between automatic and manual operation. The device has an integrated KNX bus communication module and is designed for mounting on a 35 mm profile rail. Power is supplied via the KNX bus and no auxiliary power supply is required.
Technical data
Power supply
- 30 Vdc voltage via KNX bus
Outputs
- Number: 16 (bistable relays)
- Voltage 230V AC
- Current: 16 A
Inputs
- Number: 16 (8 digital, 8 configurable analog/digital)
- For passive temperature sensors (NTC 10 kΩ at 25°C)
- For switches, buttons, or traditional potential-free sensors
Supply
The supply includes a terminal for connection to the KNX bus line. Any NTC temperature sensors to be connected to the inputs must be ordered separately.
Functions / Features
- Plastic casing
- Buttons and LEDs for control and output status indication on the front panel
- Button and LED for programming or manual/automatic operation on the front panel
- Bus line connection via KNX terminal
- Connection of loads to outputs via screw terminals with cable cross-section up to 4 mm²
- Connection of loads to inputs via screw terminals with cable cross-section up to 2.5 mm²
- Connection of different phases on adjacent outputs
- Device with 8 modular units (1 MU = 18 mm)
