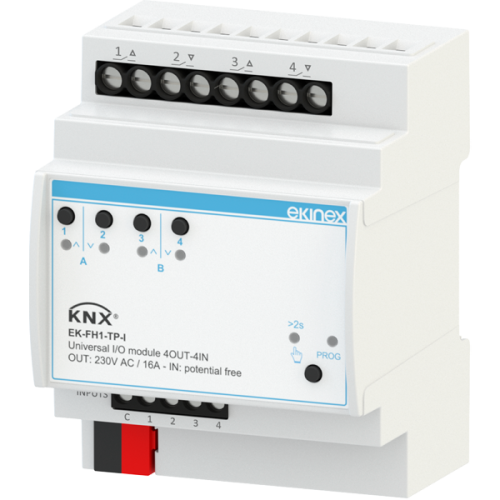

ÆVO built to last - Unbreakable reliability and resilience for a hassle-free tomorrow. The EK-FH1-TP-I universal I/O module from the ÆVO Series allows you to control up to 4 groups of electrical devices, such as lights and valves, or up to 2 motorized drives, such as blinds and 3-way valves, independently and in any combination you like. for this purpose, the device has outputs equipped with potential-free bistable relay contacts that guarantee that the set control status is maintained even in the event of a power failure.
In addition, EK-FH1-TP-I allows the control of up to 4 drives, scenarios, up to 2 motors, dimmers, or the climate control of up to 4 rooms using the integrated thermostat/hygrostat function, by reading traditional commands and sensors equipped with potential-free contacts or passive NTC temperature probes; For this purpose, the device has 4 analog/digital inputs that can be configured independently with interrogation voltage produced inside the device.
The product is equipped with buttons for manual control and LEDs for status indication; a button allows switching between automatic and manual operation. The device has an integrated KNX bus communication module and is designed for mounting on a 35 mm profile rail. Power is supplied via the KNX bus and no auxiliary power supply is required.
Technical data
Power supply
- 30 Vdc voltage via KNX bus
Outputs
- Number: 4 (bistable relays)
- Voltage 230V AC
- Current: 16 A
Inputs
- Number: 4 (configurable analog/digital)
- For passive temperature sensors (NTC 10 kΩ at 25°C)
- For switches, buttons, or traditional potential-free sensors
Supply
The supply includes a terminal for connection to the KNX bus line. Any NTC temperature sensors to be connected to the inputs must be ordered separately.
