Thanks to its robust construction and high-quality materials, the waterproof cover provides weather resistance without sacrificing the sophisticated design that distinguishes Ekinex products. Once installed, it offers an IP65 degree of protection, making it ideal for outdoor applications and industrial or residential settings with high security requirements. Perfect for those seeking a reliable, functional and aesthetically impeccable solution, the waterproof cover is the perfect synthesis of protection, innovation and style.
IP65 waterproof certifications
- Standard: IEC 60529
- Function: Protection against foreign bodies (solids and liquids)
- IP (Ingress protection) code followed by two digits:
First digit: protection against dust
Second digit: protection against liquids
Main characteristics
- White or black color, hinged cover
- Front plate in finish

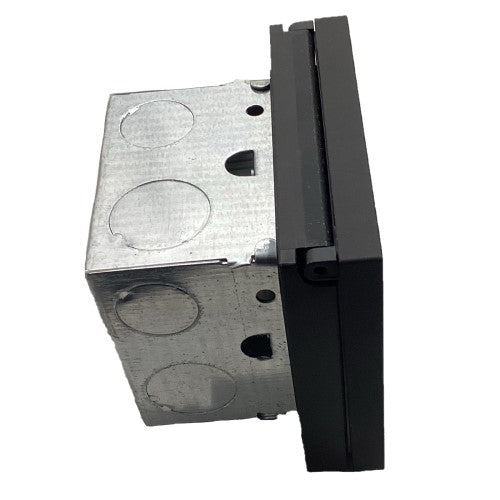

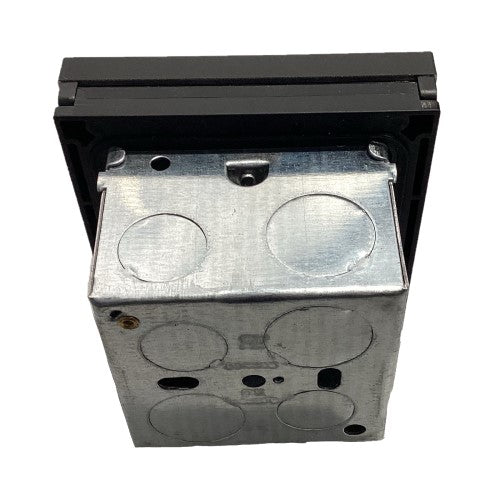

- Screw fixing on standard 2-module flush-mounted square box
- Horizontal mounting direction
- Protection degree IP65
- Installation temperature: -25 / +60 °C
- Dimensions (L x H x D) and weight: 98 x 98 x 23 mm, 100 g
Accessories
The following accessories are available for completion and must be ordered separately:
- Metal front plate with finish EK-DQW-...
- Frame-adapter for power socket Ekinex EK-K55-B
- Frame-adapter for Ekinex EK-K60-B control panels
Functions / Features
Ergonomic design

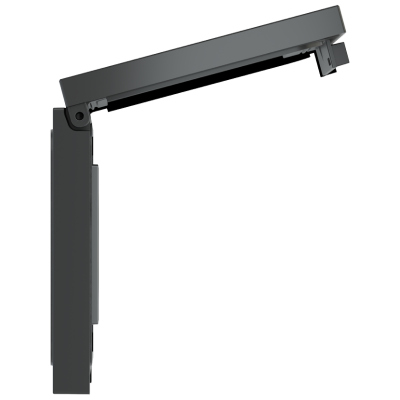

- Hinged opening system for convenient and safe use without compromising grip accessibility
Premium materials
- Robust construction with high-quality finish for seamless integration into any architectural context
Compatibility
Guaranteed protection (IP65)
- Complete protection against dust
- Protection against water jets from any direction
Applications
- Outdoor environments: verandas, patios, naval areas
- Humid spaces: saunas, baths, swimming pools
Specific standards
- Israeli Standards (SI/IS 60034, 60364)
- IEC 60364
- BS EN 60529
