Highlights
-
- KNX button
-
- Glass surface
-
- Integrated thermometer
The Cala KNX M-T push-button has a touch-sensitive button with which functions in the KNX building bus system can be called up, such as switching lights and devices, dimming, moving drives, sending values, scenes. A white LED is integrated in the touch surface and its behaviour can be adjusted.
A temperature sensor is integrated into Cala KNX M-T. An external temperature reading can be received via the bus and processed with its own data to create a total temperature (mixed value). Communication objects can be connected by AND and OR logic gates.
The device is supplemented with a frame of the switch series used in the building, and thus fits seamlessly into the interior fittings.
Models:
N° EL-70860 Cala M1-T Single Push Button, white
N° EL-70862 Cala M1-T Single Push Button, black

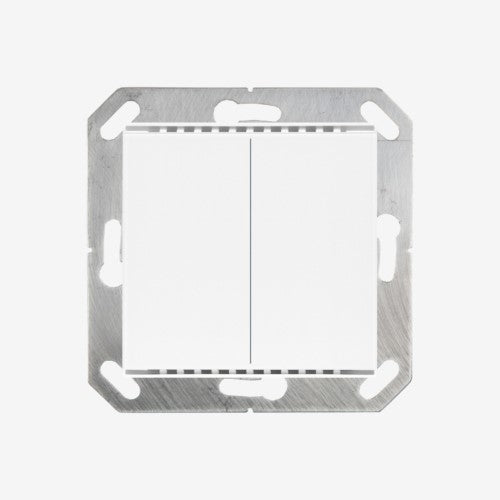

N° EL-70870 Cala M2-T Double Push Button, white

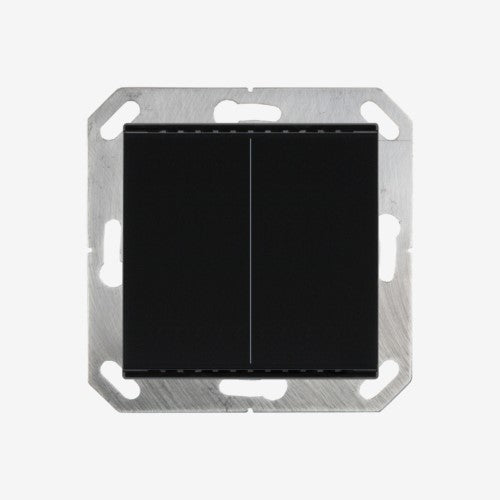

N° EL-70872 Cala M2-T Double Push Button, black

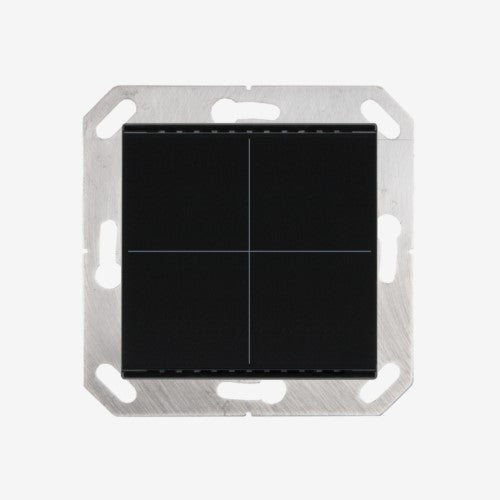

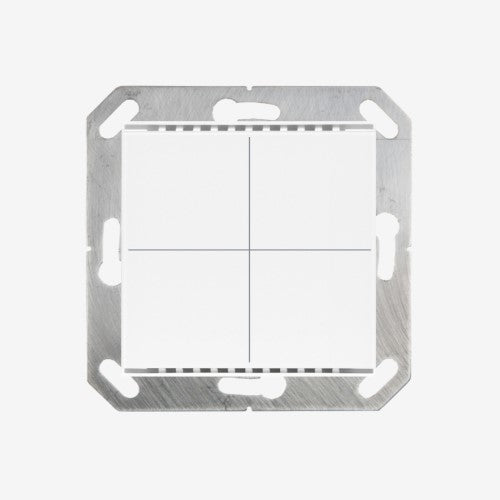

N° EL-70880 Cala M4-T Four-gang Push Button, white
N° EL-70882 Cala M4-T Four-gang Push Button, black
Delivery without frame
Technical Data
| General: |
| Casing |
Genuine glass, plastic, metal |
| Casing colour (similar) |
RAL 9010 (white)
RAL 9005 (black) |
| Degree of protection (after assem-bly) |
IP20 |

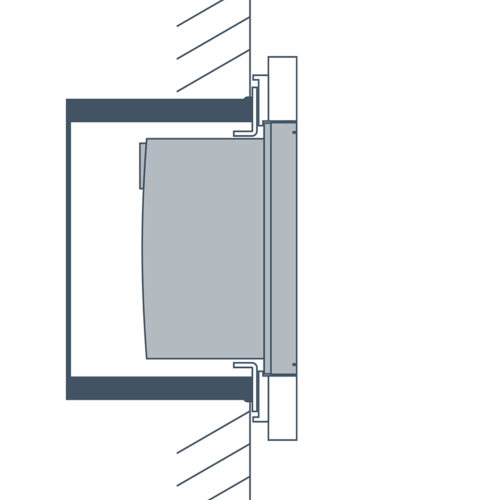

Size (W × H × D)
Supporting ring (W × H)
Mounting depth |
55mm × 55mm × 35mm
71 mm × 71 mm
≈ 7mm |
| Total weight |
≈ 50g |
| Ambient temperature |
-5…+45°C |
Ambient humidity (RH)
(non-condensing) |
0...95% |
| Storage temperature |
-25...+70°C |
| Overvoltage category |
III |
| Degree of contamination |
2 |
| KNX bus: |
| Medium |
TP1-256 |
| Configuration mode |
S-Mode |
| Group addresses max. |
183 |
| Assignments max. |
183 |
| Communication objects |
44 = 1G / 55 = 2G / 73 = 4G |
| Nominal voltage |
30V DC SELV |
| Power consumption |
≤ 15 mA |
Connection KNX plug-in terminals
Conductor diameter
Stripping length |
0.6…0.8mm s
5mm
|
| Duration after bus voltage restora-tion until data is received |
≈ 5s |
| Sensors: |
| Temperature measurement range |
-5…+60°C |
