Highlights
-
- Colour touch display with various display and operating pages
-
- Human Centric Lighting, colour temperature and RGB light control
-
- Light Switching or dimming
-
- Operation of drives (shading, windows)
-
- Integrated sensors for temperature, humidity and CO2
Cala Touch KNX features a touch display that shows various display and control pages depending on the individual configuration. There is one page available that shows the current measured values, a menu area to adjust device settings and pages with touch control elements for internal temperature control, for light (manual switching or dimming, RGB, colour temperature, Human Centric Lighting), for shades or windows (manual operation), for scenes and bus info. The integrated timer and alarm clock are useful helpers in everyday life.
The Room Controller Cala Touch KNX for the KNX bus system measures various ambient climate. Via the bus, the indoor sensor can receive external values and process them further with its own data to a total value (mixed value, e.g. room average).
All measured values can be used for the control of threshold value-dependent switching outputs. States can be linked via AND logic gates and OR logic gates. Multifunctional modules change input data as required by means of calculations, querying a condition, or converting the data point type.
In addition, an integrated manipulated variable comparator can compare and output variables that were received via communication objects. Integrated PI-controllers control ventilation (according to humidity or CO2-concentration) and/or heating/cooling (according to temperature).
Cala Touch KNX is supplemented with a frame of the switch series used in buildings, and thus fits seamlessly into the interior fittings.
Models:

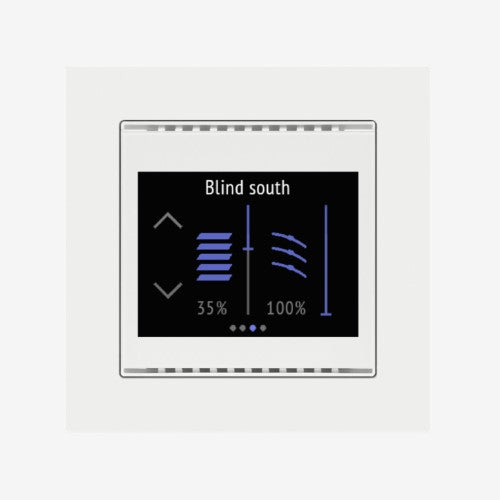

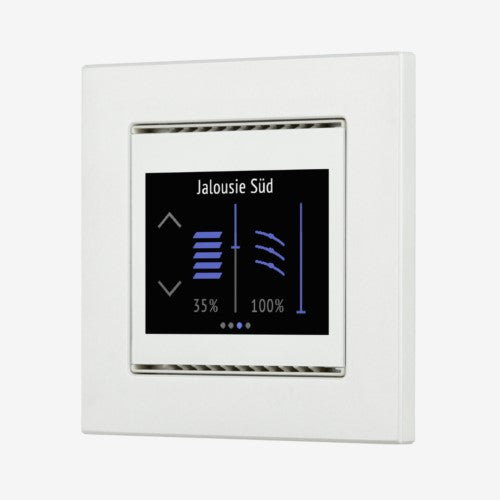

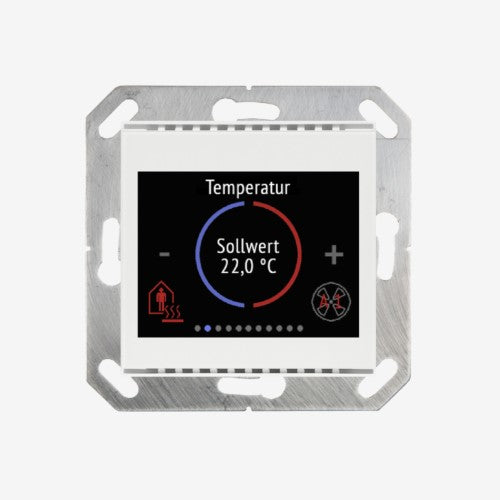

N° EL-70820 Cala Touch KNX AQS/TH, white with temperature, humidity and CO2-sensor

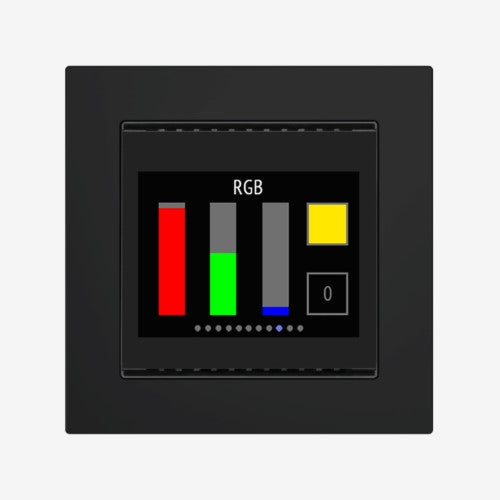

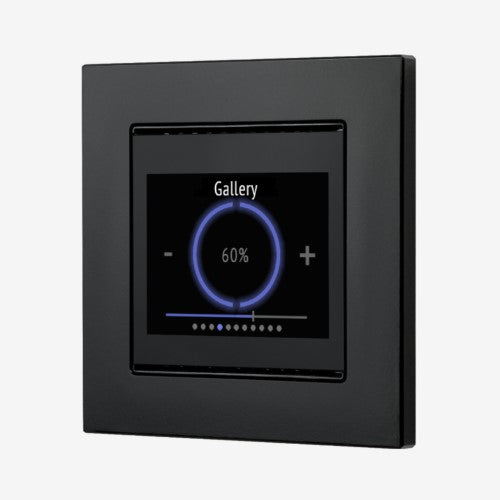

N° EL-70822 Cala Touch KNX AQS/TH, black with temperature, humdity and CO2-sensor

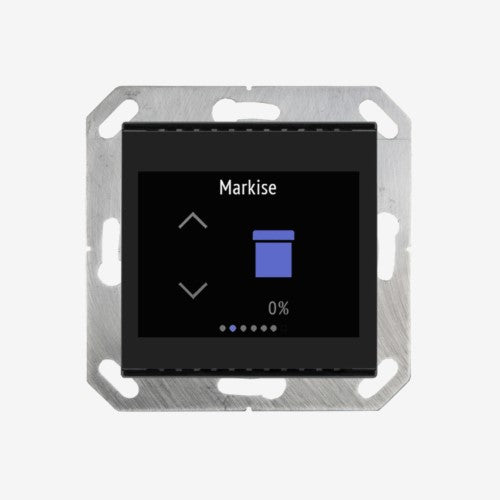

Delivery without frame
Technical Data
| General: |
| Casing |
Genuine glass, plastic |
Display
Visible diagonal
Resolution [pixels] |
2.3" (59 mm)
320 × 240 |
| Colours (similar) |
RAL 9010 (white)
RAL 9005 (black) |
| Degree of protection |
IP20 |

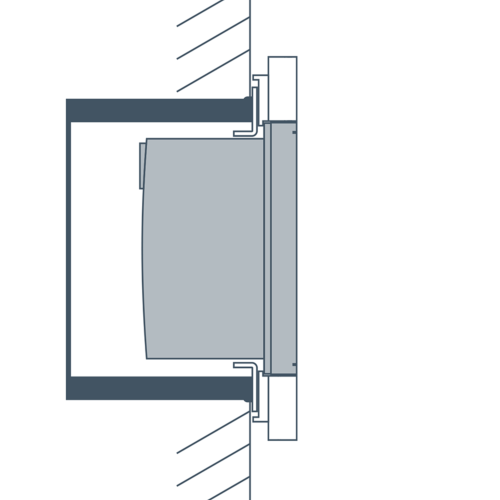

Size (W × H × D)
Supporting ring (W × H)
Mounting depth |
55 mm × 55 mm × 35 mm
71 mm × 71 mm
7 mm |
| Total weight |
≈ 90 g |
| Ambient temperature |
0…+45°C / -5…+45°C / -5…+45°C |
Ambient humidity (RH)
(non-condensing) |
5...95 % |
| Storage temperature |
-25...+70°C |
| Overvoltage category |
III |
| Pollution degree |
2 |
| KNX bus: |
| Medium |
TP1-256 |
| Configuration mode |
S-Mode |
| Group addresses max. |
2000 |
| Assignments max. |
2000 |
| Communication objects |
471 / 433 / 379 |
| Nominal voltage |
30V DC SELV |
| Power consumption |
≤ 18mA |
Connection KNX plug-in terminal
Conductor diameter
Stripping length |
0.6…0.8 mm s
5 mm |
| Duration after bus voltage restoration until data is received |
≈ 5 s |
| Inputs: |
| Number |
4 |
| Analogue/digital |
|
| Contact voltage |
3.3 V |
| Contact current |
0.33 mA |
| Measuring range T-NTC temperature sensor (no. 30516) on input |
-40...+80°C |
| Maximum cable length T-NTC / digital inputs |
3 m / 10 m |
| Sensors: |
| CO2 measurement range |
400...5000 ppm |
| Humidity measurement range |
5...95 % |
| Temperature measurement range |
-5…+60°C |
