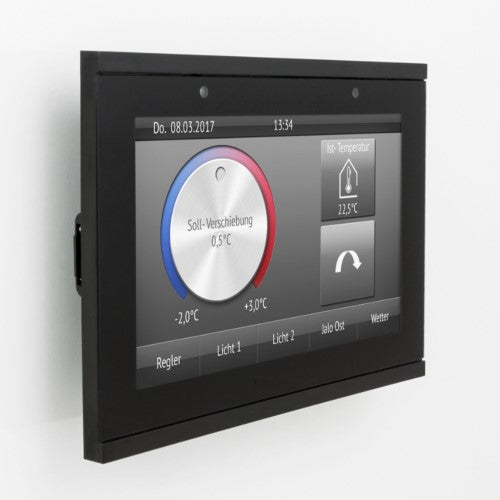

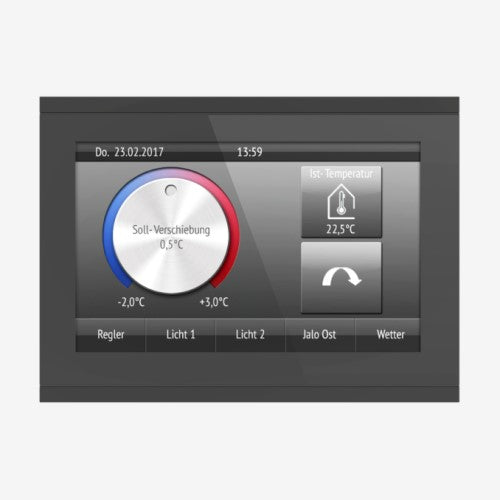

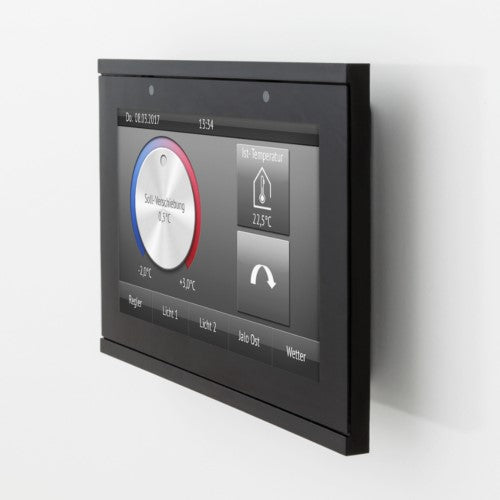

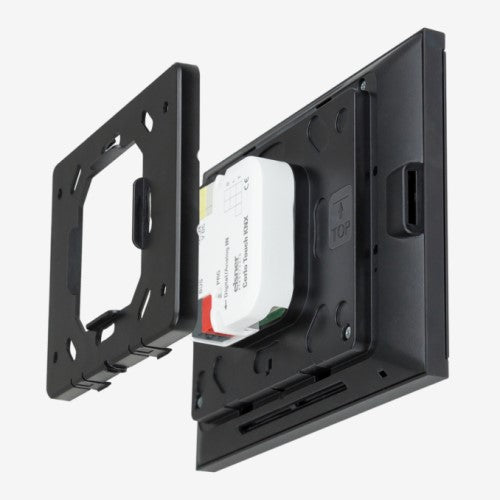

The Display Corlo Touch KNX 5in for the KNX system offers a variety of options for ist use: Ist touch-sensitive glass interface means that it can be used as a normal switch. The high resolution display is ideal for displaying text, images or graphics. In addition to current readings and messages, the KNX bus system can also display photographs, for example. Concurrently, you can set up the Corlo Touch KNX 5in as a control center for automatic shading, ventilation and air conditioning regulation.
With the Corlo Touch KNX 5in WL model, you can also show network content on the display using the WLAN connection, e.g. web pages, IP camera images or visualizations. The Corlo Touch KNX 5in WL display screen can, for example, be shown on a Smartphone, if a VPN connection is provided externally.
Models:
N° EL-70475 Corlo Touch KNX 5in WL, black/black glossy, with Wi-Fi communication
N° EL-70481 Corlo Touch KNX 5in, black/black glossy
Corlo Mobile App
for Corlo Touch KNX 5in WL is available in Google Play Store (Android) and in the App Store (Apple). Requirements: Corlo Touch KNX 5in WL. Terminal (smart phone, tablet PC) with Wi-Fi access and operating system Android 3.0 or iOS 8.0 (and up).
Technical Data
| General: |
| Casing |
glass, plastic |
| Colour |
black |
| Degree of protection |
IP20 |
Size (W × H × D)
Mounting depth |
133mm × 97mm × 35mm
20mm |
Display
Visible diagonal
Resolution [pixels] |
5"
800 × 480 |
| Total weight |
≈ 200g (5in) / ≈ 210g (5in WL) |
| Ambient temperature |
0…+45°C |
RH (relative humidity),
non-condensing |
5...95% |
| Storage temperature |
-10...+50°C |
| Overvoltage category |
III |
| Pollution degree |
2 |
| No moving parts |
fanless |
| Other data interfaces |
Micro SD |
| Browser |
QT Webkit |
| WLAN: |
| Standards |
IEEE 802.11a/b/g/n/ac |
| Frequency range / Transmission power |
2400...2483.5MHz / ≤ 100 mW
5150...5825MHz / ≤ 50 mW |
| Encryption |
64/128-bit WEP, WPA/WPA2 |
| KNX bus: |
| Medium |
TP1-256 |
| Configuration mode |
S-Mode |
| Group addresses max. |
1024 |
| Assignments max. |
1024 |
| Communication objects |
1022 |
| Nominal voltage |
30V ⎓ SELV |
| Power consumption |
≈ 10 mA |
| Duration after bus voltage restora-tion until data is received |
≈ 6s |
| Supply: |
| Voltage |
21.6…26.4V ⎓ |
Power consumption at
during startup briefly
max.
typ.
min. |
24 V
– / ≈ 4.8 W (5in WL)
≈ 2.7 W (5in) / ≈ 3.5 W (5in WL)
≈ 2.0 W (5in) / ≈ 2.4 W (5in WL)
≈ 1.4 W (5in) / ≈ 1.9 W (5in WL) |
| Connection: |
Plug-in terminal
Conductor diameter
Stripping length |
Ø 0.6…0.8mm s
5mm |
| Inputs: |
| Number |
4 |
| Analogue/digital |
|
| Contact voltage |
3.3V |
| Contact current |
0.33mA |
| Measuring range T-NTC tempera-ture sensor (no. 30516) on input |
-40...+80°C |
Maximum cable length
T-NTC / digital inputs |
3m / 10m |
