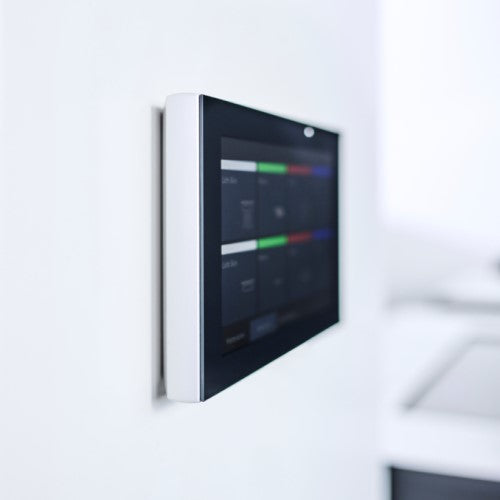

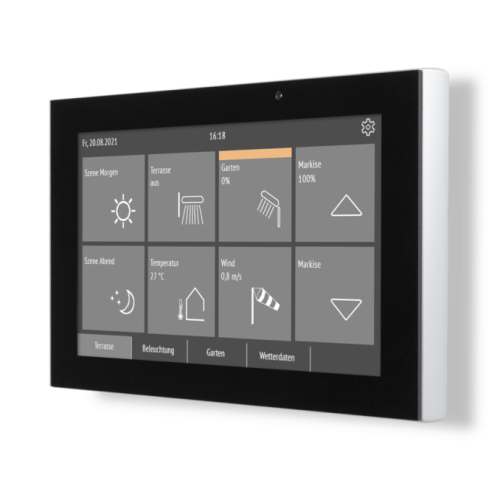

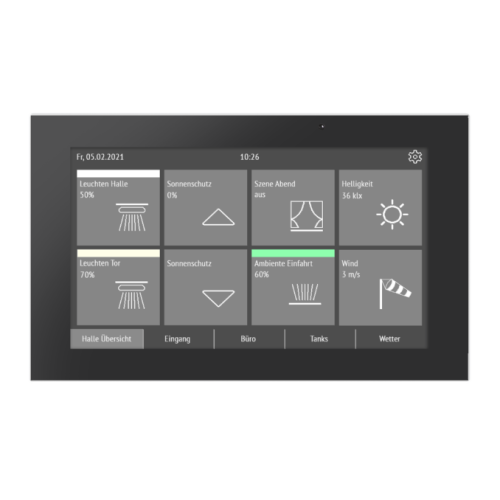

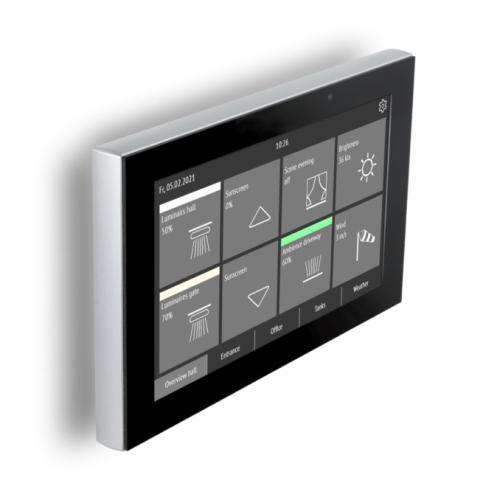

The Fabro KNX Touch Panel is an operating and display panel with IP 67 protection for the KNX building bus system. A robust aluminium housing protects the 7-inch screen with real glass touch surface. 8 areas can be displayed on each of 5 display pages. Texts, values, a symbol and a colour field are displayed in each area. Functions with objects from 1 bit (switching) to 14 bytes (text) are assigned to the areas.
In the application, 8 AND and 8 OR logic links as well as 8 multifunction modules for calculation, conditions and data conversion are available. 8 alarm input objects can trigger text displays or beeps on the Fabro KNX.
- 7 inch colour touch display for manual operation and as a display in the KNX building bus
- 5 display pages, each of which have 8 different interfaces that can be configured for operation or display: Switch, button, display, input, universal interface
- Screen saver (clock, off) can be switched on or off
- Automatic switch-off can be turned on or off, integrated brightness sensor for switch off in case of darkness
- Key tone can be switched on or off
- 8 AND and 8 OR logic gates each with 4 inputs. 16 logic inputs in the form of communication objects can be used as inputs for the logic gates. The output from each gate can be configured optionally as 1-bit or 2 x 8-bit
- 8 multi-function modules (computers) for changing the input data by calculations, by querying a condition or by converting the data point type
- 8 alarm inputs, alarm output as text, sound and/or flashing display lighting
Technical Data
| General: |
| Housing |
anodised aluminium, real glass |
| Colour (similar) |
RAL 9005 jet black |
| Degree of protection |
IP67 |
| Size (W × H × D) |
191 mm × 121 mm × 23 mm |
| Weight with cable |
≈ 950 g |
| Display resolution |
800 × 480 px |
| Ambient temperature |
-20…+55 °C |
| Storage temperature |
-30...+70 °C |
| Overvoltage category |
III |
| Length connection cable |
3 m |
| Current carrying capacity of cable |
3 A |
Conductor diameter connection terminals
Rigid conductor cross-section
Flexible conductor cross-section |
0.2…4 mm²
0.14…4 mm² |
| Stripping length |
11mm |
| No moving parts (fanless) |
|
| KNX bus: |
| Medium |
TP1-256 |
| Configuration mode |
S-Mode |
| Group addresses max. |
1024 |
| Assignments max. |
1024 |
| Communication objects |
336 |
| Nominal voltage |
30V DC SELV |
| Power consumption |
≤ 10mA |
| Duration after bus voltage restoration until data is received |
4 s |
| Supply: |
| Voltage (SELV power supply unit in accordance with EN 61558) |
20...30V DC SELV |
| Power consumption [at] |
≤ 140mA [24 V DC] |
