The Sensor Intra-Sewi KNX TH-L-Pr additionally measures the temperature and the air humidity and calculates the dew-point. Via the bus, the indoor sensor can receive external values of temperature and humidity and process them further with its own data to a total value (mixed value, e.g. room average). Integrated PI-controllers control ventilation (humidification/dehumidification according to humidity) and heating/cooling (according to temperature).
The Sensor Intra-Sewi KNX TH-L-Pr can output a warning to the bus as soon as the comfort field, as per DIN 1946, is left. Actuating variable comparators can compare and output variables that were received via communication objects.
All measurement values can be used for the control of limit-dependent switching outputs. States can be linked via AND logic gates and OR logic gates.

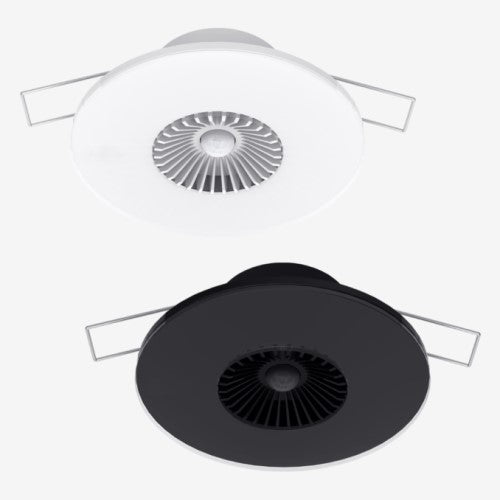

Models:
N° EL-70681 Intra-Sewi KNX TH-L-Pr Presence, Brightness and Ambient Climate Sensor, white
N° EL-70682 Intra-Sewi KNX TH-L-Pr Presence, Brightness and Ambient Climate Sensor, black
Functions
- Brightness measurement with brightness control
- Presence of persons is detected
- Threshold values can be adjusted per parameter or via communication objects
- Measuring the temperature and air humidity (relative, absolute), each with mixed value calculation. The share of internal measurement value and external value can be set as a percentage
- Bus message, whether the values for temperature and air humidity are within the comfort field (DIN 1946). Dew point calculation
- PI-controller for heating (one or two-stage) and cooling (one or two-stage) according to temperature. Regulation according to separate setpoints or basic setpoint temperature
- PI controller for humidity according to humidity: Ventilate/Air (one-stage) or Ventilate (one or two-stage)
- 2 actuation variable comparators to output minimum, maximum or average values. 5 inputs each for values received via communication objects
- 4 AND and 4 OR logic gates, each with 4 inputs. All switching events as well as 16 logic inputs (in the form of communications objects) can be used as inputs for the logic gates. The output of each gate can be configured optionally as 1-bit or 2 x 8-bit
- Configuration is made using the KNX software ETS
Technical Data
| General: |
| Casing |
plastic, glass |
| Colours (similar) |
• RAL 9010 (white)
• RAL 9005 (black) |
| Size (Ø × H) |
80mm × 36mm |
| Degree of protection |
IP30 |
| Total weight |
≈ 50 g |
| Ambient temperature |
-5…+45°C |
Ambient humidity (RH)
(non-condensing) |
5...95% |
| Storage temperature |
-25...+70°C |
| Overvoltage category |
III |
| Pollution degree |
2 |
| KNX bus: |
| Medium |
TP1-256 |
| Configuration mode |
S-Mode |
| Group addresses max. |
254 |
| Assignments max. |
254 |
| Communication objects |
252 / 122 |
| Nominal voltage |
30V DC SELV |
| Power consumption |
≤ 10mA |
Connection KNX plug-in terminal
Conductor diameter
Stripping length |
0.8mm s
5mm |
| Duration after bus voltage restoration until data is received |
≈ 5 s |
| Sensors: |
Detection method Presence
Passive infrared method |
PIR |
| Presence coverage angle |
≈ 94° × 82° |
| Presence range |
≈ 5 m |
| Brightness measurement range |
0 Lux … 2000 Lux |
| Temperature measurement range |
-5…+60 °C |
| Humidity measurement range (rH) |
0...100 % |
