The KNX eTR M push button has touch-sensitive buttons, with which functions in the KNX building bus system can be called, such as switch lights and devices, dim, activate drives, send values, scenarios. A white LED is integrated into each touch button, the behaviour of which can be adjusted.
A temperature sensor is integrated into KNX eTR M. An external temperature reading can be received via the bus and processed with its own data to create a total temperature (mixed value).
Communication objects can be connected by AND and OR logic gates.
Models:

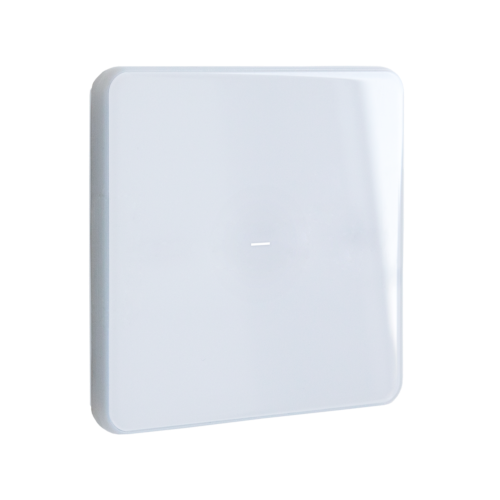

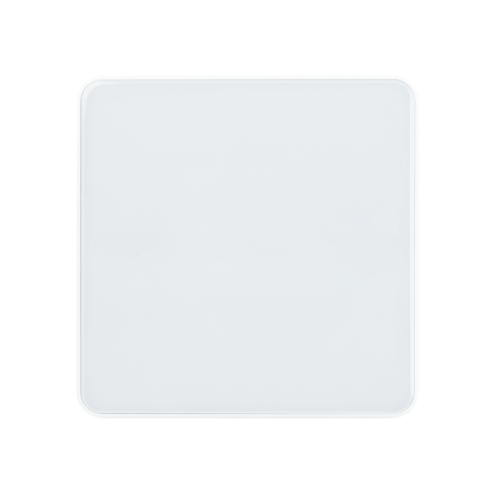

No. EL-71113 KNX eTR M1, signal white RAL 9003 – Version with locking screw on the bottom of the housing
No. EL-71114 KNX eTR M1, jet black RAL 9005 – Version with locking screw on the bottom of the housing

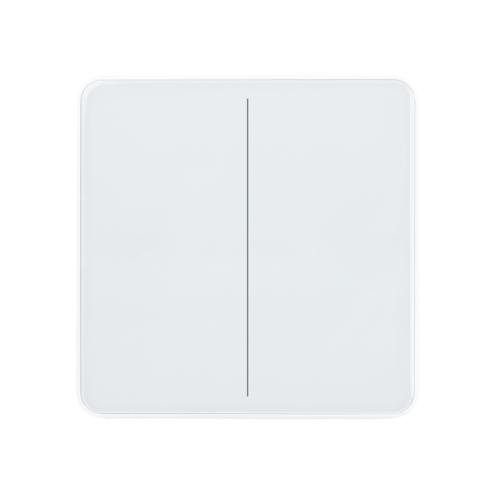

No. EL-71123 KNX eTR M2, signal white RAL 9003 – Version with locking screw on the bottom of the housing

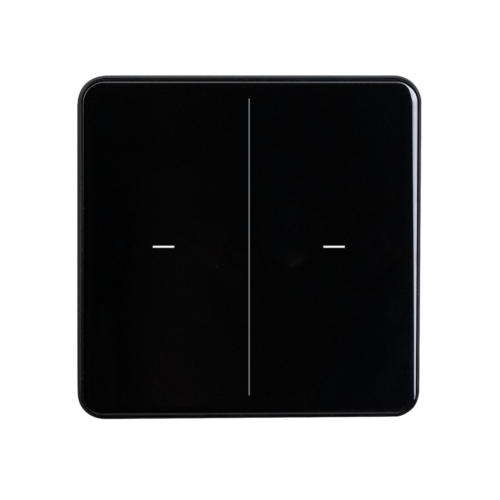

No. EL-71124 KNX eTR M2, jet black RAL 9005 – Version with locking screw on the bottom of the housing

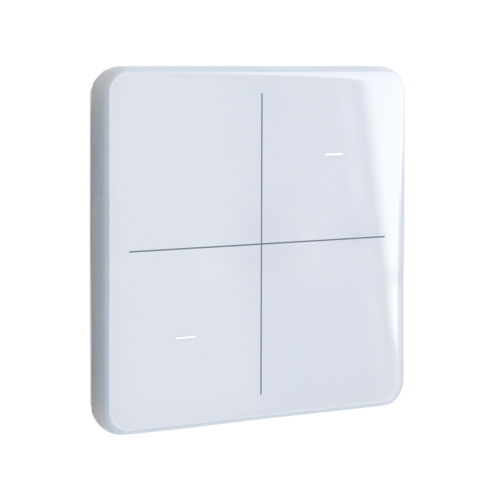

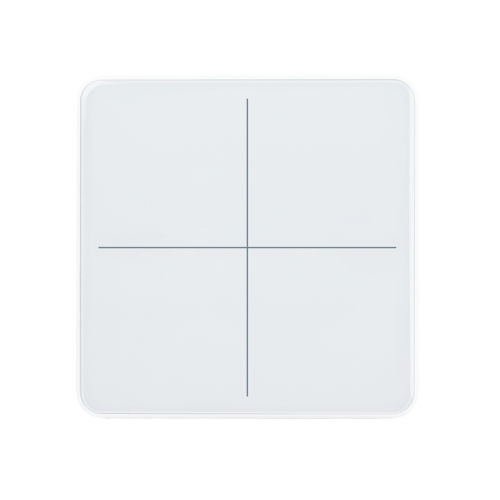

No. EL-71133 KNX eTR M4, signal white RAL 9003 – Version with locking screw on the bottom of the housing

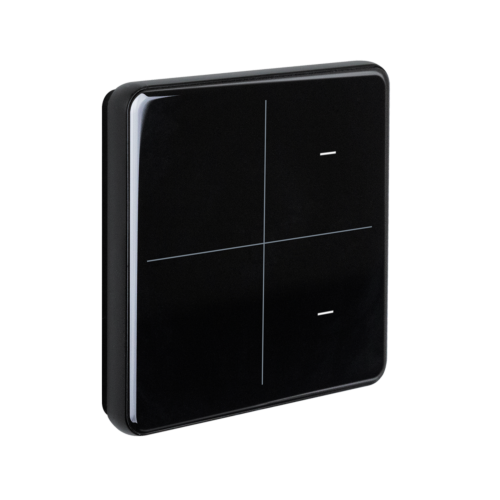

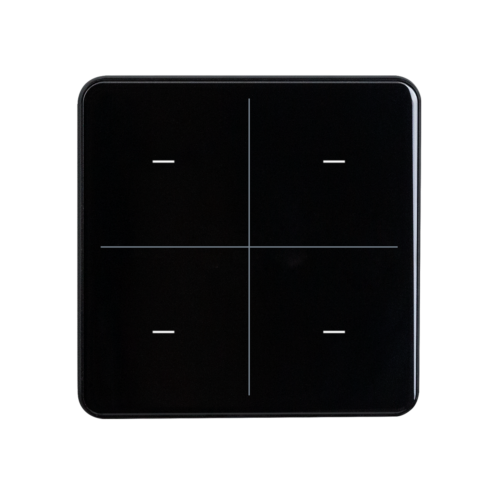

No. EL-71134 KNX eTR M4, jet black RAL 9005 – Version with locking screw on the bottom of the housing
Functions
KNX eTR M1 functions:
- 1 Touch bus button, can be configured as switch, selector switch, dimmer, blind (position and slats up/stop OR down/stop), shutters (up/down/stop), awning (in/out/stop), window (closed/open/stop), as 8 or 16-bit encoder or for scenario recall/storage
KNX eTR M2 functions:
- 2 Touch bus button, can be configured as switch, selector switch, dimmer, for operating drives, as 8 or 16-bit encoder or for scenario recall/storage
- Area function when touching both push buttons. Can be configured as switch, selector switch, as 8 or 16 bit encoder or for scenario recall
KNX eTR M4 functions:
- 4 Touch bus button, can be configured as switch, selector switch, dimmer, for operating drives, as 8 or 16-bit encoder or for scenario recall/storage
- Area function when touching two or more push buttons. Can be configured as switch, selector switch, as 8 or 16 bit encoder or for scenario recall
Function of all models:
- One LED per touch area. On for object value = 1 / Off for object value = 0, On after pressing button for settable time or always off. Settable, as to whether LED flashes at block object value = 1
- Temperature measurements. Mixed value from own measured value and external values (proportion can be set by percentage)
- 2 AND and 2 OR logic gates each with 4 inputs. 8 logic inputs (in the form of communications objects) can be used as inputs for the logic gates. The output from each gate can be configured optionally as 1-bit or 2 x 8-bit
- Configuration is made using the KNX software ETS 5
Technical Data
| General |
| Casing Genuine glass, plastic |
|
| Colours (similar) |
RAL 9003 (white)
RAL 9005 (black) |
Assembly on the wall or on device
socket according to |
DIN 49073 |
| Size approx. (W × H) |
81.5 mm x 81.5 mm |
| Mounting depth approx. |
12 mm |
| Total weight approx. |
70 g |
| Ambient temperature |
-5…+45°C |
Ambient humidity (RH)
(non-condensing) |
5...95% |
| Storage temperature |
-30...+85°C |
| Overvoltage category |
III |
| Degree of contamination |
2 |
| KNX bus |
| Medium |
TP1-256 |
| Configuration mode |
S-Mode |
| Group addresses max. |
183 |
| Assignments max. |
183 |
| Communication objects |
44 / 55 / 73 |
| Nominal voltage |
30 V SELV |
| Power consumption max. |
10 mA |
| Connection KNX plug terminals |
Conductor cross-section: 0.6…0.8 mm² s
Stripping length: 5 mm |
Connection spring-loaded terminals
Conductor cross-section |
solid and fine-stranded conductors: 0.2...0.75 mm²
fine-stranded conductors with ferrules: 0.25...0.34 mm²
Stripping length: 7...9 mm |
Duration after bus voltage restoration
until data is received approx. |
5 s |
| Sensor |
| Temperature measurement range |
-5…+60°C |
