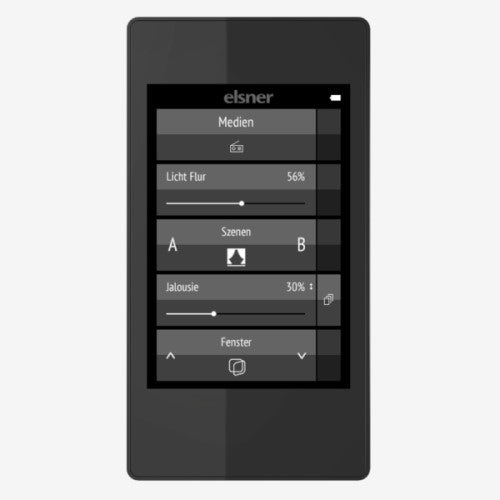

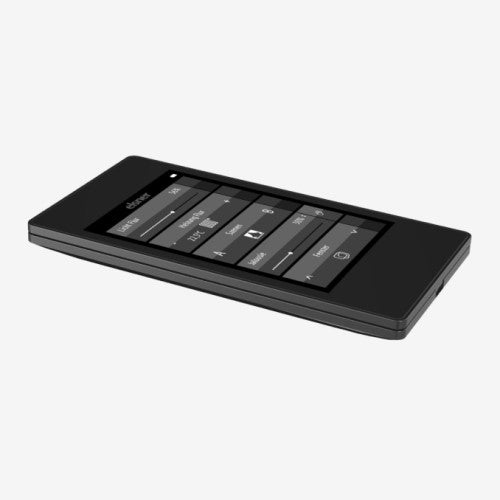

The colour touchscreen of Remote control Remo KNX RF can be used to manually to control bus participants in the KNX system. Remo KNX RF uses the KNX RF S standard. The possible functions are
- Switch
- Dimm
- Move the drives of awnings, shutters, blinds or windows
- Change the temperature (for heating/cooling)
- Change RGBW light colour
- Change light colour temperature
- Call and save scenes
- Operate media equipment
- Indicate bus values (e.g. status, sensor values).
The channels are set in the ETS. However, they can be individually sorted and named on the display.
Functions
- Operation via the touch display
- Lithium battery, chargeable via a USB-2.0 Micro-B charger (charger no. 10155 as an optional accessory). Battery level status and a warning at <20% battery charge can be sent via the bus
- 32 channels, wireless standard KNX RF, S-Mode
- The touch buttons can be named individually, directly on the device or in the ETS
- The display sequence can be changed directly on the device
- Setting functions on the display can be locked (and unlocked) via the application and the bus
- Configuration is made using the KNX software ETS
If communication with wired KNX devices (KNX TP) is necessary, a media coupler that connects KNX RF and KNX TP is needed.
Technical Data
| Housing |
Plastic |
| Colour |
black |
| Degree of protection |
IP 40 |
| Dimensions |
approx. 64 x 122 x 11 (B x H x T, mm) |
| Display |
colour TFT, capacitive, dimmable, resolution 320 x 480 Pixel |
| Weight |
approx. 100 g |
| Ambient temperature |
operating 0…50 °C, storage -10…+60 °C |
| Ambient humidity |
max. 5... 95 % RH, avoid condensation |
| Operating voltage |
integrated battery 3.8 V DC |
Frequency range
Transmission power |
868.0...868.6 MHz
max. 25 mW |
| Channels |
32 |
| Data output |
KNX RF (S-Mode) |
| Group addresses |
max. 512 |
| Assignments |
max. 1024 |
| Communication objects |
417 |
