The weather stations Suntracer KNX sl basic for the KNX building bus system measure temperature, wind speed, brightness and recognise precipitation. All values can be used for the control of limit dependent switching outputs. States can be linked via AND logic gates and OR logic gates. Multifunction modules change input data as required by means of calculations, querying a condition, or converting the data point type. The compact housing accommodates the sensors, evaluation circuits and bus-coupling electronics.
Functions
- Brightness measurement (current light strength) with 3 sensors. Separate values, maximum or mixed value usable
- Wind measurement: The wind strength is measured electronically and thus noiselessly and reliably, even during hail, snow and sub-zero temperatures. Even turbulent air and rising winds in the vicinity of the device are recorded
- Wind sensor monitoring: If the wind measurement value changes by less than ± 0.5 m/s within 48 hours, the maximum measurement value of 35 m/s is output as a fault message. All wind alarms with a limit value below 35 m/s become active as a result
- Precipitation detection: The sensor surface is heated, so that only drops and flakes are recognised as precipitation, but not mist or dew. When the rain or snow stops, the sensor is soon dry again and the precipitation warning ends
- Temperature measurement
- Frost protection for shading systems
- Switching outputs for all measured and computed values. Threshold values can be adjusted per parameter or via communication objects
- 8 AND and 8 OR logic gates, each with 4 inputs. All switching events as well as 16 logic inputs (in the form of communications objects) can be used as inputs for the logic gates. The output of each gate can be configured optionally as 1-bit or 2 x 8-bit
- 8 multi-function modules (computers) for changing the input data by calculations, by querying a condition or by converting the data point type
Technical Data
| General: |
| Housing |
Plastic |
| Colour |
White / Translucent |
| Assembly |
On-wall or pole |
| Protection class |
IP 44 |
| Dimensions (W x H x D) |
approx. 62 mm × 75 mm × 155 mm |
| Weight |
weather station with mount approx. 90 g, total weight including accessories approx. 280 g |
| Ambient temperature |
-30…+50°C |
| Storage temperature |
-30…+70°C |
| Connection cable |
4-wire (bus +/-, auxiliary voltage +/-), diameter approx. 5 mm |
| KNX bus: |
| Medium |
TP1-256 |
| Configuration mode |
S-Mode |
| Group addresses |
max. 2000 |
| Assignments |
max. 2000 |
| Power consumption |
max. 10 mA |
| Data output |
KNX +/- |
| Connection KNX plug terminals |
0.6…0.8 mm² s |
| Stripping length |
5 mm |
| Duration after bus voltage restoration until data is received |
approx. 4 s |
| Supply: |
| Voltage |
20...30 V DC |
| Current max. |
at 24V DC: max. 90 mA |
| Sensors: |
| Measurement range temperature sensor |
-30°C … +50°C |
| Measurement range wind sensor |
0 m/s … 35 m/s |
| Measurement range brightness sensor |
0 Lux … 99,000 Lux |
| Communication objects |
339 |

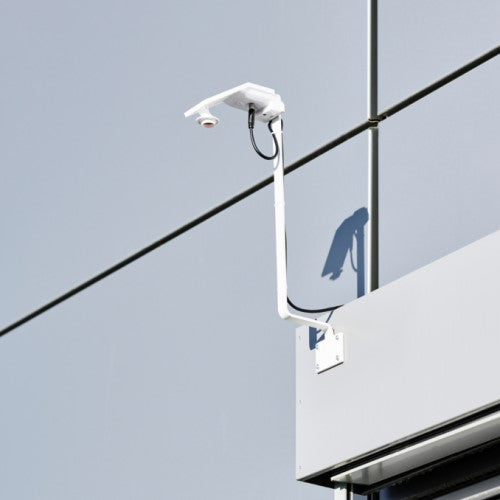

| Mounting Arm Fix: |
| Colour |
white RAL 9003 powder-coated finish |
| Total length |
approx. 430 mm |
| Weight |
approx. 190 g |
Scope Of Supply
- Weather station
- Connection cable approx. 10 m, with plug and connecting terminals
- Surface-mounted junction box (IP 55, for indoor use only)
- 4×50 mm stainless steel roundhead screws and 6×30 mm dowels for wall mounting
- Fix mounting with installation accessories
- Installation instruction (German, English, French, Italian, Spanish)
