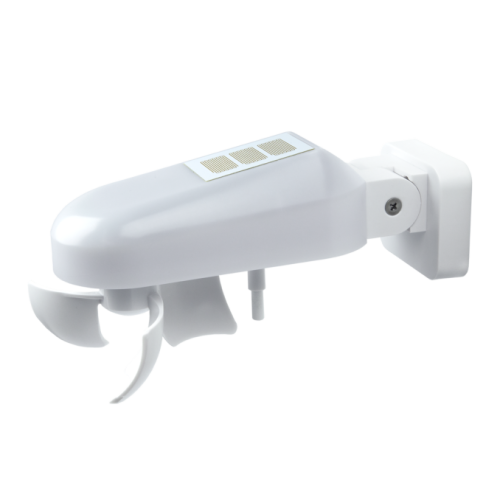

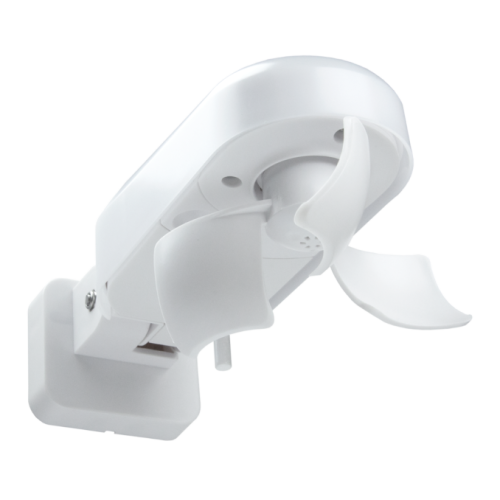

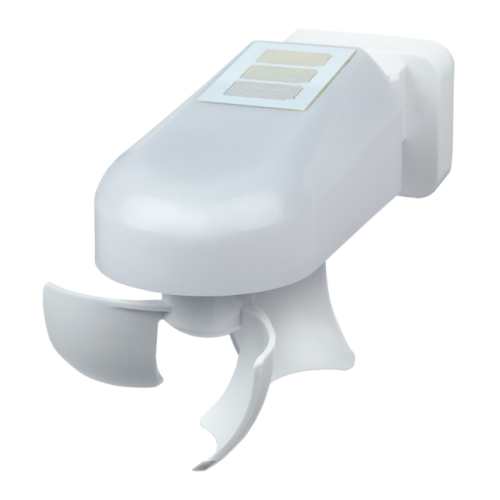

The Windancer 2.0 GPS KNX sec weather station for the KNX building bus system measures temperature, wind speed and brightness, and detects precipitation.
In the ETS application, all values can be used to control threshold-dependent switching outputs. The states can be linked using AND and OR logic gates.
Functions
- Wind measurement with stable cup anemometer (up to 200 km/h under laboratory conditions), wind measurements in m/s, km/h and Beaufort
- Brightness measurement (current illuminance). Measurement with 3 separate sensors (east, south, west). Separate threshold values for night
- Precipitation detection: The sensor surface is heated, so that only drops and flakes are recognised as precipitation, but not mist or dew. When the rain or snow stops, the sensor is soon dry again and the precipitation warning ends
- Temperature measurement
- KNX Data Secure, extended secure key table (peer-to-peer key table) for > 1,000 keys
- Intuitive configuration interface/menu navigation, context-sensitive help and semantic information (Smart Linking Ready)
- A simple roller shutter and blind control can be implemented using threshold values and associated switching outputs. For this purpose, up to three brightness thresholds are defined for each compass direction (east/south/west)
- All threshold values can be set via parameters or communication objects
- Live data preset: current measured value can be set as a limit value via a communication object (wind, temperature, brightness)
- Location query (Northern/Southern Hemisphere) controls the correct output of east and west brightness values
- 8 AND and 8 OR logic gates, each with 4 inputs. All switching events as well as 16 logic inputs (in the form of communications objects) can be used as inputs for the logic gates. The output of each gate can be configured optionally as 1-bit or 2 x 8-bit
Technical Data
| General: |
| Housing |
plastic |
| Colour |
white/translucent |

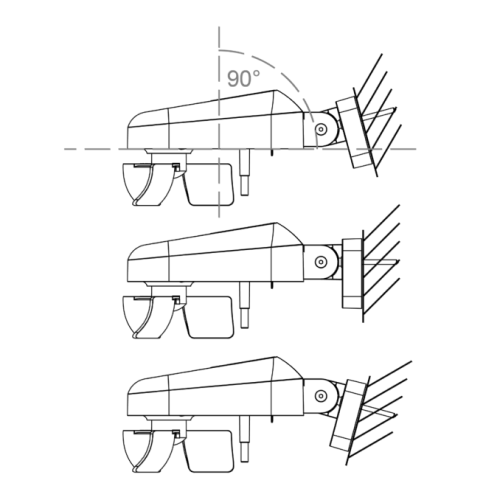

| Assembly |
on-wall |
| Degree of protection |
IP44 |

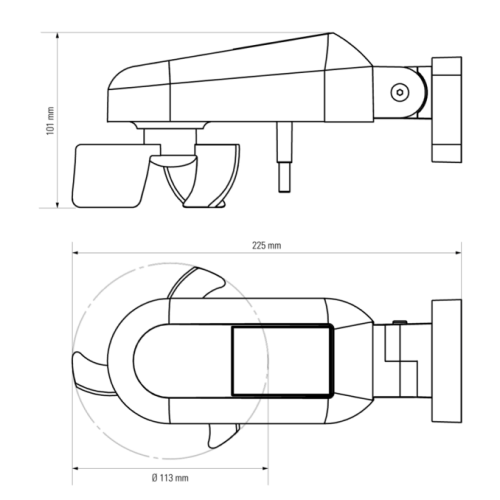

| Dimensions (W x H x D) |
113 mm × 101 mm × 225 mm |
| Total weight |
≈ 260 g |
| Ambient temperature |
-25...+50 °C |
| Storage temperature |
-30...+70 °C |
| KNX bus: |
| Medium |
TP1-256 |
| Configuration mode |
S-Mode |
| Group addresses maximum |
2300 |
| Assignments maximum |
2300 |
| Communication objects |
305 |
| Power consumption |
≤ 14 mA |
| Connection |
KNX-Steckklemme |
| Conductor diameter |
Ø 0.8 mm |
| Stripping length |
5 mm |
| Duration after bus voltage restoration until data is received |
≈ 5 s |
| Supply: |
| Auxiliary supply |
20...32 V DC SELV |
| Auxiliary current [at] |
≤ 60 mA [24 V DC] |
| Sensors: |
| Measurement range temperature |
-25...+50 °C |
| Measurement range wind [at] |
2…30 m/s [25 °C] |
| Measurement range brightness |
0 Lux … 150 000 Lux |

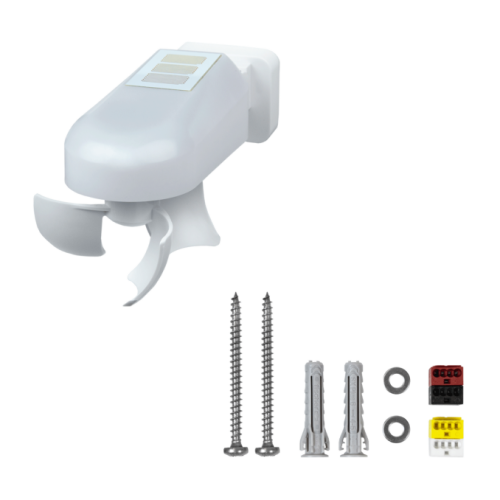

Scope Of Supply
- Weather station
- 2× Stainless steel pan head screw, WN56, 4×50mm, cross recess
- 2× dowel S 6
- 2× DIN 125 washer V2A, A4.3 outer diameter 9 mm
- KNX plug-in terminal and plug-in terminal (white/yellow)
- Installation instruction (English, German, French, Italian, Spanish)
- Manual German, English, French, Italian, Spanish) as download
- Application (German, English, French, Italian, Spanish)
