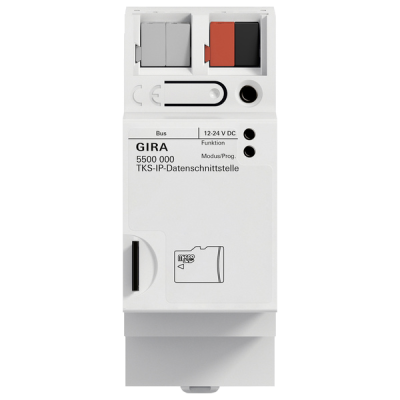

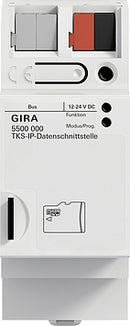

The data interface is used to expand the current push-button start-up procedure by adding convenient start-up via PC/laptop and to connect the 2-wire bus to IP.
Configuration via Gira Project Assistant (GPA).
Commissioning of large projects.
Reading out of the configuration data of existing systems.
Connection of Gira 2-wire bus to IP.
Only suitable for indoor use.
Technical data
Power supply
2-wire bus: DC 24 V ±10 %
Additional power supply: DC 12 V to 26 V
Current consumption: max. 5 mA
Connections
2-wire bus: 2 x plug terminals
2-wire bus AS: 2 x plug terminals
Optical display
Mode: orange
Fct./Prog.: green
IP communication: Ethernet 10/100 BaseT (10/100 Mbit/s)
Ambient temperature: -5 °C to +45 °C
Humidity: 93 % rel. humidity
Protection class: III (in accordance with IEC 61140)
