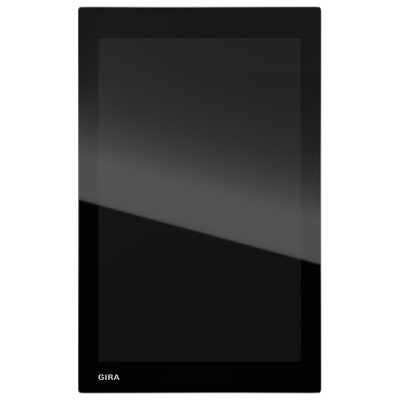

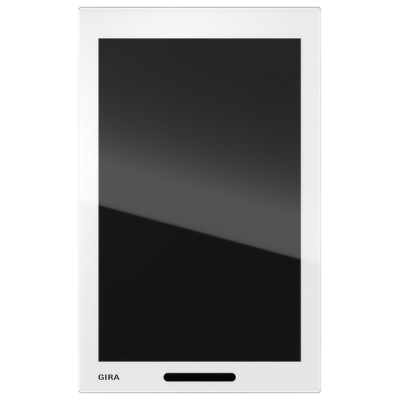

G1 Wi-Fi

Features

• Operation is done via a single capable multi-touch display.
• Connection and communication is dependent on LAN or WLAN.
• Integrated speaker.
• Integrated microphone with echo compensation.
• Mono block device with integrated power supply and RJ45 connector.
• Fast commissioning via the Gira project project assistant (GPA) with optimized usage profiles for room or building operation.

Possible uses and combinations

• The Gira G1 as a multifunctional room operating device presents the following functions or Combinations of functions available:
  - residential unit as SIP client
  - Apartment station for TKS-IP Gateway
  - Integration of Internet services
  - Client for the following systems / Servers - Gira HomeServer - Gira X1- Gira One

Features as a residential unit Video

• Camera switching: targeted selection of the connected color cameras.
• Control of the door opener.
• Turning the phone tone on and off.
• Rufton selectable from 10 melodies.
• Call acceptance.
• Setting of ring tone and speech volume.
• Internal calls.
• Floor call can be triggered via extension entrance.
• Floor call can be triggered via key sensor for KNX.

Properties as a residential unit with SIP client

• Client function for SIP for external systems of e.g. B. Comelit, TCS, SCHÜCO DCS Touch, 2N.
• SIP Direct calls or via registrar.
• 64 internal calls possible e.g. concierge.
• Early Media Support for Video Image.

Integration of Internet services

• Gira Wetterportal: Display of the weather forecast for up to five locations (internet access required).

Properties as Gira HomeServer Client

• Depending on the configuration, the Gira G1 can be used in systems with a Gira HomeServer as a client from HomeServer Expert Version 4.13.
• The Gira G1 displays the interface design of the Gira HomeServer. Almost all functions available in the series delivery range of the Gira HomeServer and also diagrams, cameras, camera archives, messages, value displays and the weather forecast are supported. The free visualization is also displayable.
• Both light and dark design is supported and can be switched on.
• A simplified parameterization via the GPA is possible if the G1 is to be used as a pure room operating device.
• In addition, the G1 can be used as a residential station in parallel. This function can be realized for Gira 2-wire door communication via the TKS-IP gateway or as a SIP client.

Properties as Gira X1 client

• Depending on the configuration, the Gira G1 can be used as a client in systems with a Gira X1.
• After activation, the Gira G1 displays the interface design of the Gira X1. Up to 500 Gira X1 functions can be supported.
• In addition to the X1 functions of the building control, the Gira G1 includes the following functions as the Gira X1 client:
  - Direct function
  - Gira door communication
  - online weather service

Properties as Gira One Server Client

• Depending on the configuration, the Gira G1 can be used as a client in attachments with a Gira One server.
• After activation, the Gira G1 displays the Gira Smart Home app interface. Up to 250 Gira One consumers can be visualized.
• A maximum of 50 Gira G1 is possible in a Gira One project.
• In addition to building control consumers, the Gira G1 client provides the following functions in the Gira One Server:
  -Direct function.
  -Gira door communication.
  -Online weather service.
• The power supply of the Gira G1 is provided via the integrated power supply medium 24 V DC or via the network cable (Power over Ethernet)
• The Gira G1 can be operated in 2.4 GHz or 5 GHz networks.

Technical data

• Power supply: PoE
• PoE performance class 0: DC 48 V PoE
• PoE standard: IEEE 802.3af
• Network installation: Ethernet specification: Cat.5e, Cat.6, Cat.6a, Cat.7
• Power consumption
  • Maximum: 8 W
  • Typical: 4 W
•  Connections
  • Network connection: RJ45
  • Substation entrance for floor switch: Plug-in clamp, cable set 5-wiry
•  Display
  • Diagonal: 17.78 cm (á 7"
  • Number of colors: 16.7 M
  • Resolution: 800 x 1280 px., 216 ppi
  • Brightness: 340 cd/m ²
  • Contrast ratio: 1:1000
  • Viewing angle: >85° all around
• Ambient temperature: +5 °C to +40 °C
• Proximity sensor
  • Range: max. 40 cm
  • Collection range: 30° horizontal, 10° vertical
  • Protection class: IP3XD
•  Dimensions
  • Construction height: B 114 x H 181 x D 15 mm
  • Installation depth: 18 mm
• Connection line: 24 V DC
• Connections
  • Power supply: Plug-in clamp 2-pole
  • Power supply: DC 16-31 V - 2 V
• Proximity sensor
  • WLAN Standard: IEEE 802.11b/g/n/ac 2.4GHz + 5 GHz
