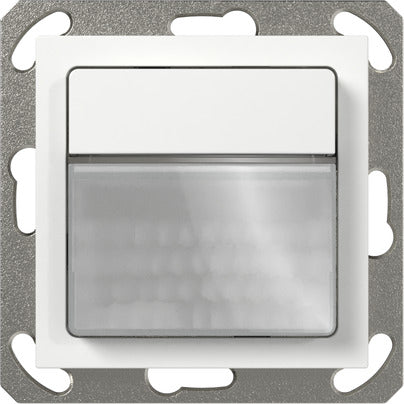

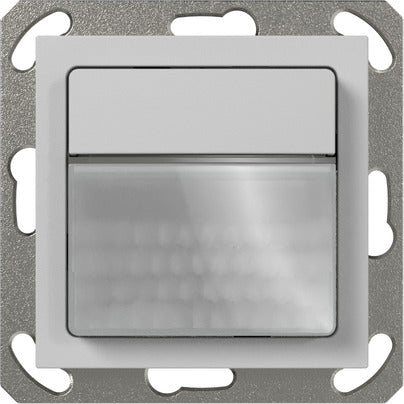

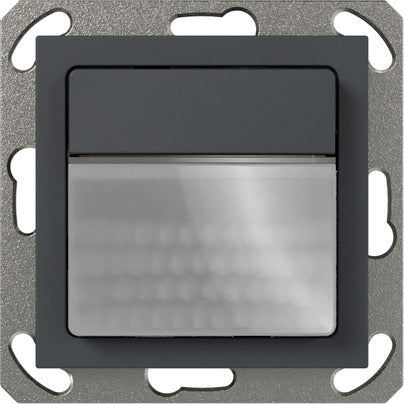

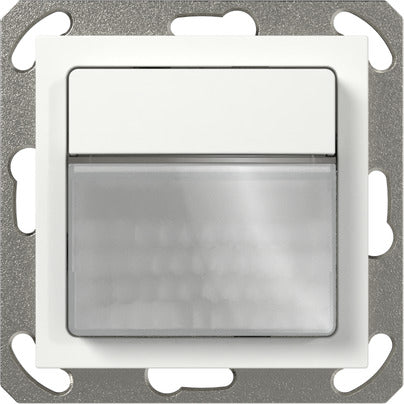

Motion detector 1.10 m for Gira One

Features

• Motion detector (with passive infrared sensor/PIR) for Gira One.
• For automatic switching of Gira One actuators depending on movement and brightness.
• The delay time of the Gira One consumer is configured via the relevant actuator channel in the Gira Project Assistant (GPA).
• Integrated temperature sensor for measuring the room temperature.
• Integrated local button to control the Gira One consumer: Switching, staircase and scene.
• Commissioning the motion detector with the Gira Project Assistant (GPA) version 5.2.
• Encrypted data transfer between the Gira One devices.

Features of the motion detector

• Large detection range (up to 238 m²).
• Expansion of the detection range with additional motion detectors.
• It is possible to limit the detection range.
• It is possible to configure the sensitivity of the sensors.
• Walking test function to help in planning and adjusting the PIR detection range.
• Mixed light measurement suitable for fluorescent lamps (FL/PL/ESL), halogen/light bulbs and LEDs.

Room temperature

• Temperature adjustment for the integrated temperature sensor.

LED display

• Status LED function selection: always OFF, movement display.
