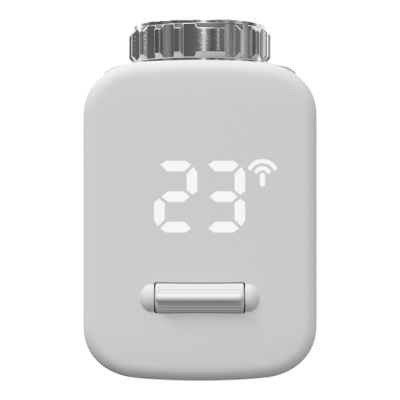

Battery-operated wireless servo for controlling heating valves via KNX RF Multi.

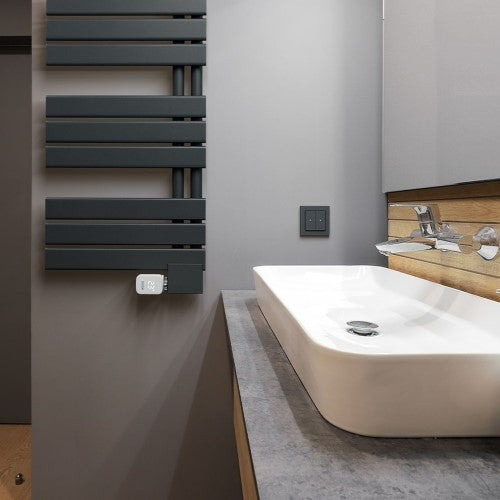

Installation on indoor radiators.
Compatible with heating valves with an M30 x 1.5-mm connection thread without the need for an adapter.
For Danfoss RA/RAV/RAVL, suitable adapters are included with screw and nut and a pin (only for RAV). These are mounted between the heating valve and the radiator thermostat.
Servos in the same room can be grouped for optimum control of multiple radiators.
Internal temperature sensor.
Integrated heating controller for absolute and relative heating control.
On-site operation (configurable) for target temperature adjustment, boot function and comfort extension.
Display showing the target temperature and diagnostics.
Configurable boost function.
Comfort extension/presence function.
Operating mode switchover (comfort, standby, night mode, frost protection).
Forced setting.
Service mode.
Automatic valve flushing.
Scene auxiliary unit for 16 scenes for operating mode adjustment with memory function.
Diagnostic fault and error messages are output directly on the device and/or via a KNX telegram.
The KNX bus displays the battery status.
For maintenance work, the servo can be moved to the variable 0 or 100% using the service mode function.
