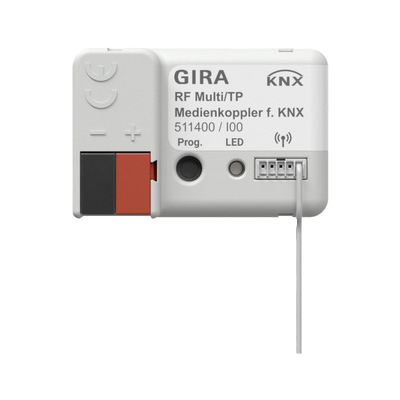

RF Multi/TP media coupler for KNX

Features

• Interface between wired KNX products (TP) and KNX RF Multi and Ready wireless products.
• A range of functions for extending existing systems with KNX RF devices or for integrating devices into new buildings.
• Supports a number of KNX RF variants, including RF Ready and RF Multi, with or without KNX Secure.
• Segment integration from ETS6.
• Connects KNX devices with and without Secure.
• Enables communication between RF Ready and RF Multi.
• Can be used as an area or line coupler.
• Can be used as a repeater to extend the wireless range.
• LED for comprehensive installation and diagnostics functions.
• Supports unicast, multicast & broadcast.
• Optionally enables secure programming via TP only, making it ideal for use in publicly accessible areas.
• Can be updated and upgraded via KNX TP and KNX RF.
• Supports KNX Data Secure communication.
• KNX Data Secure telegrams can be processed and, depending on the settings applied, can be filtered, forwarded or blocked in KNX RF Ready mode (ETS5).
• Fast communication between KNX products in main line and line (long frame support with ETS5 and higher).

Technical data

• KNX medium: RF1.R, RF1.M, TP1-256
• Start-up mode: S mode
• Power supply: From a KNX bus or 24 V SELV
• Ambient temperature: -5 °C to +45 °C
• Wireless frequency (KNX RF Multi): 868.3 MHz, 868.950 MHz, 869.525 MHz, 869.850 MHz
• Wireless frequency (KNX RF Ready): 868.3 MHz
• Wireless frequency (KNX RF Ready): 868.3 MHz
• Transmission power: Max. 25 mW
• Range (free field): approx. 100 m
