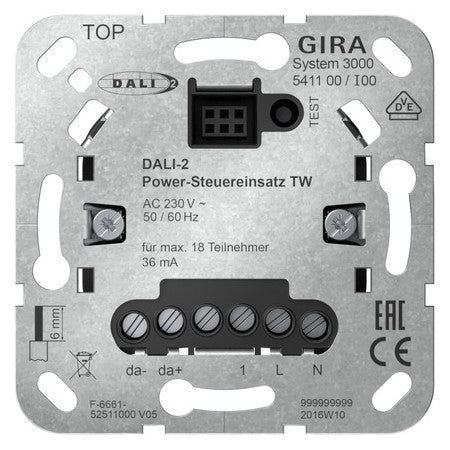

Switching and brightness adjustment for lights with a DALI interface.
Adjustment of colour temperature for lights with DALI Device Type 8 for Tunable White according to IEC 62386-209.
Operates as a DALI-2 single master.
Connecting auxiliary units is possible.
DALI power supply for 18 DALI devices.
Save the minimum brightness, the coolest and warmest colour temperature.
Switch on with the last brightness/colour temperature set, or a saved brightness/colour temperature.
With System 3000 operating top unit, 2-gang: Adjustment of the colour temperature with right-hand rocker.
Combination with RF Multi operating top unit, 1-gang / 2-gang for KNX
Dimming actuator, 1-gang.
Sensor channel, 1-gang or 2-gang.
Brightness and colour temperature control can be adjusted separately.
Local control of System 3000 insert possible.
Wireless control of other devices for KNX possible as a sensor.
Temperature detection.
Insert function selection:Dimming behaviour and dimming characteristics can be set, staircase light function with switch-off pre-warning, soft-on and soft-off function, fading function, scene function (16 scenes), disable function, time delays.Auxiliary input can be used as an additional operating point for the System 3000 insert or for wireless control of other KNX devices as a sensor.
Technical data
Rated voltage
AC 230 V, 50/60 Hz
Power consumption
max. 2.8 W
DALI rated voltage
DC 16 V (typ.)
Output current
max. 36 mA
Number of DALI devices
max. 18
Number of DALI Power control units that can be connected in parallel
