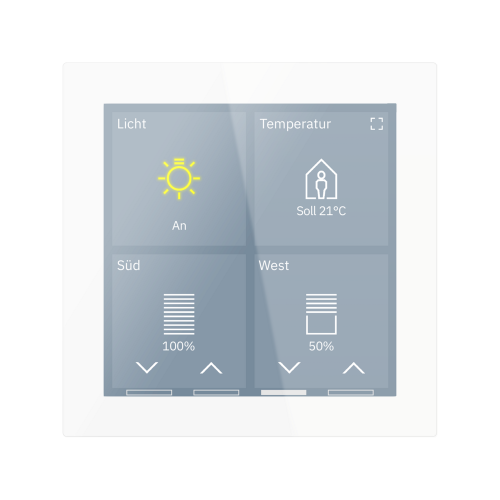

As individual as you are - as compact as you need“ is the motto of the capacitive multi-functional Glass Touch Smart with its high-resolution 4-inch TFT colour display. The elegant and individual design options of the display are impressive. The 4-inch TFT colour display can be individually customised in the ETS. Up to 32 functions can be visualised on independent levels and up to 6 statuses can be shown in standby operation.
Product functions:
- Multifunctional push-button with capacitive, high-resolution 4-inch TFT-colour display (720x 720 Pixel)
- Elegant and detailed design, combining glass and brushed aluminium
- Intuitive user interface for straightforward control of room functions
- White circumferential orientation light
- Up to 32 functions on independent levels and 6 statuses in standby
- Room functions: switching, dimming, tunable white, HSV, RGB, RGBW, sun shading, HVAC
- With Slap function and Shortcut function (to a specific level)
- Comfortable room temperature controller with temperature and humidity sensor for heating and cooling operation
- Logic functions, scene control, innovative group control
- Display of status information (1 Bit) and notification (14 Byte)
- Security against unauthorised access through code lock function (1 user)
- Individual customised design according to customer requirements (Logo, Background picture, design colour)
- Installation in a standard switch box (EU, UK, CH, CN)
-
KNX Data Secure, integrated Bus coupler
- Dimensions (H x W x D): 92 x 92 x 12.5 mm
- Requires a 24 V DC auxiliary power supply (e.g. STV-0024.01)

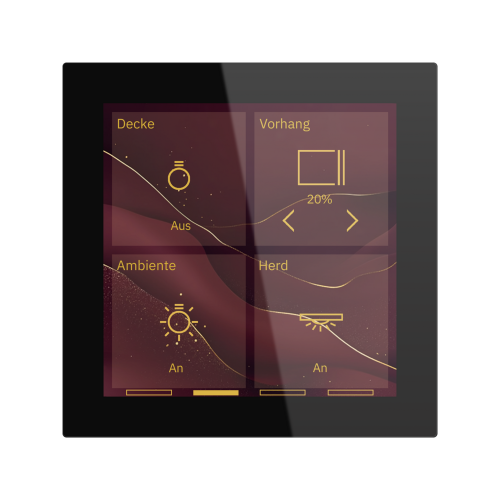

Glass Touch Smart Plus 4 - additional features:
(GTS-P4TW.01S and GTS-P4TS.01S)
- Circumferential RGBW-background illumination to signal individual operational status, alarms and orientation light
- Integrated loudspeaker for acoustical feedback (button press, signalling of alerts)
- Security against unauthorised access through code lock function (4 users)
- 2 Binary inputs to connect potential free contacts (Mechanical Push-buttons, Switches, window contacts)
- With time switch
