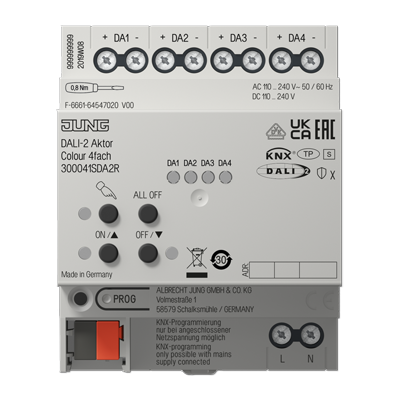

KNX DALI-2 actuator Colour 4-gang, Secure

Intended use

• Controlling of luminaires and other applications with DALI operating device in KNX installations e.g. electronic ballast
• Mounting on DIN rail according to EN 60715 in distribution box


Product characteristics

• DALI-2 certified
• Multi-master capable: additional sensors can be installed as application controllers in any DALI system
• Control of up to 128 DALI devices in 4 DALI sytems
• Broadcast control of each of the four DALI systems
• Setting of colour temperature or light colour (RGB, RGBW) for luminaires with DALI Device Type 8 acc. to IEC 62386-209
• Short-circuit, overload and overvoltage protected
• Operating hours counter
• Automatic colour circle pass or brightness pass
• Suitable for operation with DC voltage of emergency lighting systems
• Manual operation of the DALI systems
• Forced guidance of disabling function
• Collective feedback
• Central switching and dimming function
• Disabling function for each DALI system
• Separate ON and OFF delay for each DALI system
• Staircase lighting timer with switch-off warning
• Standby switch-off of the DALI devices
• KNX Data Secure compatible with ETS 5.7.7 or ETS 6.1.0 or higher
• Can be updated with the ETS Service App
